Standard Cub Cabin in Richmond, NH

This snug Cub Cabin now calls Richmond, NH home. Offering cozy quarters for on-site staff at a campsite.

See All Past Projects

Overview

  • 11’ 3” Wide x 27’ 4” Long Overall Dimensions (Outside Overhangs)
  • 10’ Wide x 26’ Long Building Dimensions = 260 sq ft
  • 1 Main Floor Bedroom
  • 1 Bathroom

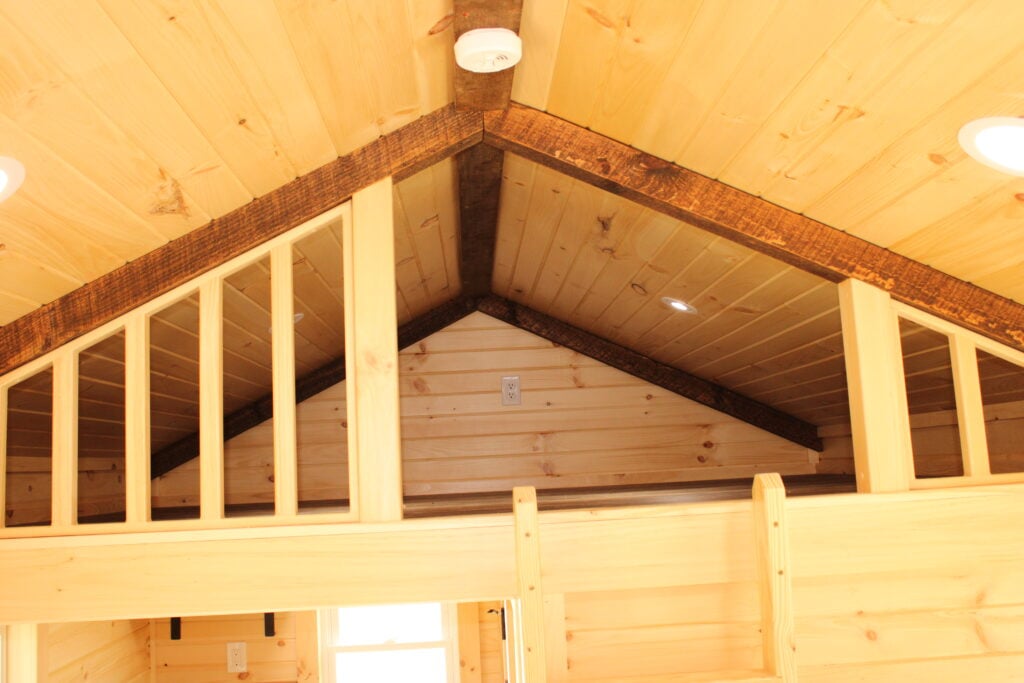

  • Storage Loft
  • Sleeps: 2
  • A Great Model for Long Term Living or Short Term Rental

Reserve Your Build Spot For $2,500 Down

SCHEDULE A CALL

Gallery

Specifications

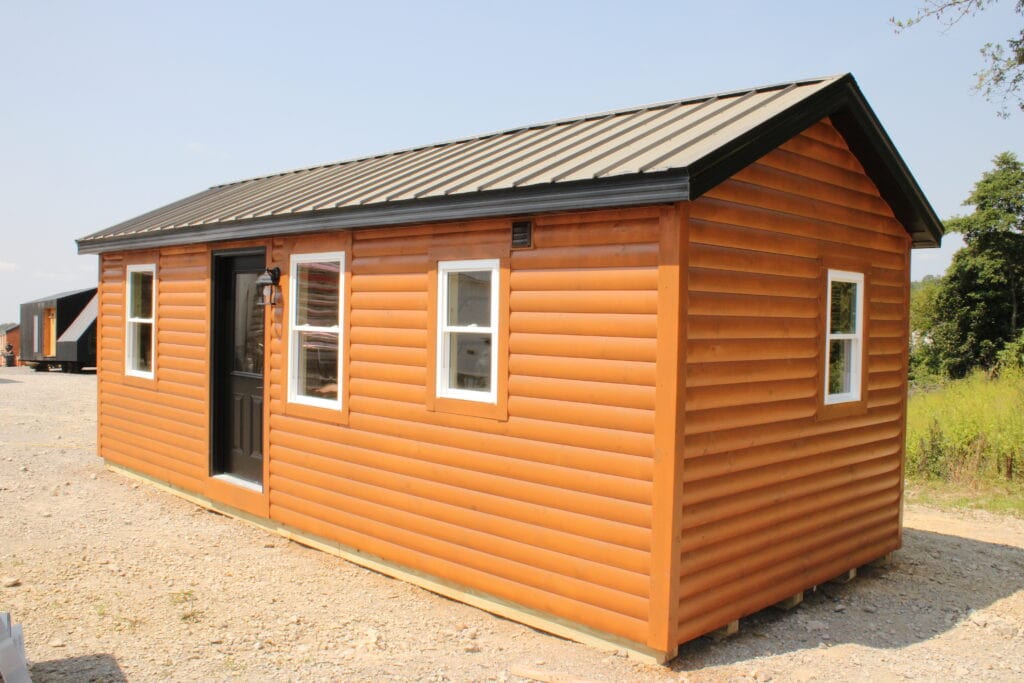

Exterior Design

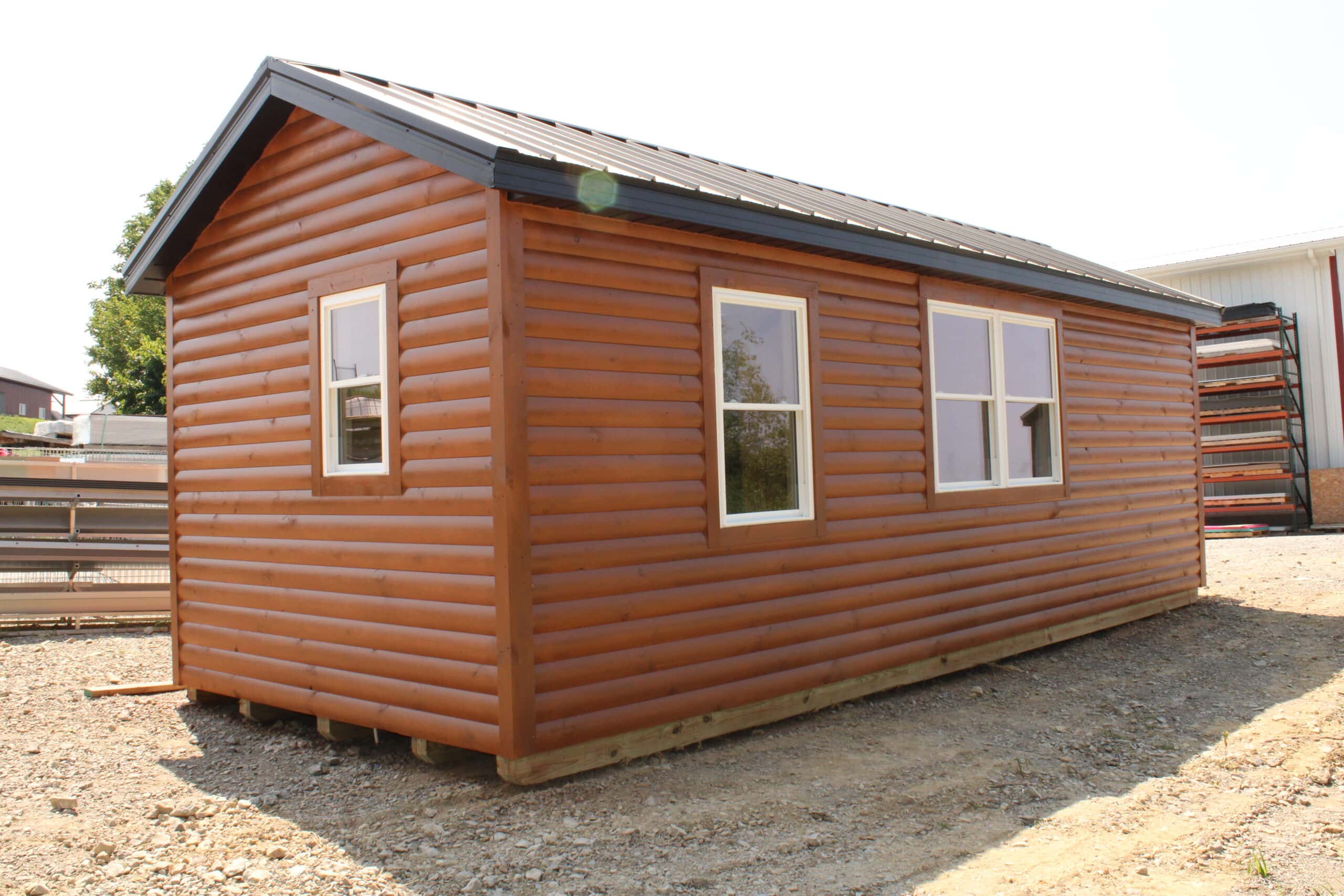

  • Pine D-Log Siding & Trim (Stained)
  • 28 Gauge, Premier Rib Metal Roof (Black Color)
  • 2”x 6” Roof Trusses, 24” On-Center w/ 7/16” OSB Underlayment & Ice Guard
  • 2”x4” Studs, 16” On-Center w/ 7/16” OSB Sheathing, House Wrap & Window/Seam Tape
  • 2”x 6” Floor Joists, 16” On-Center w/ ¾” OSB Subfloor
  • Anderson 100 Series, Double Pane Windows (White)
  • Provia 36” Half Glass Entry Door (Black)
  • Matte Black Door Hardware w/ Deadbolt

Insulation

  • R13 Batt Insulation in the Walls
  • R19 Batt Insulation in the Floor & Ceiling

Interior Design

  • Luxury Vinyl Plank Floor Throughout

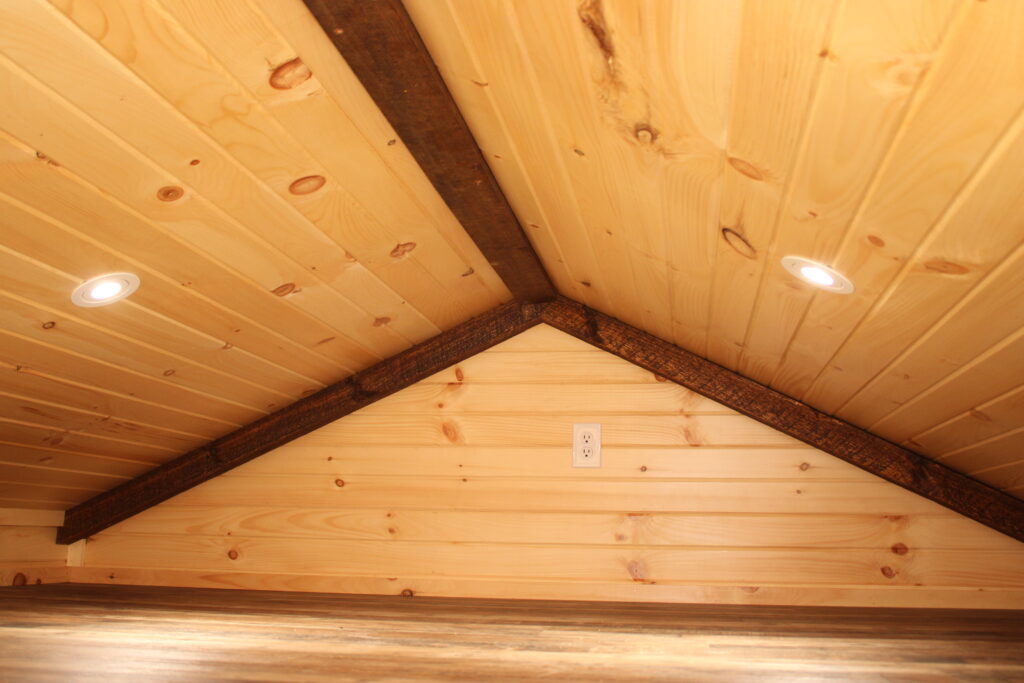

  • Walls & Ceiling Finished in 7” T&G Knotty Pine Barn Siding (Clear Finished)
  • Solid Pine Panel Doors
  • Matte Black Door Hardware

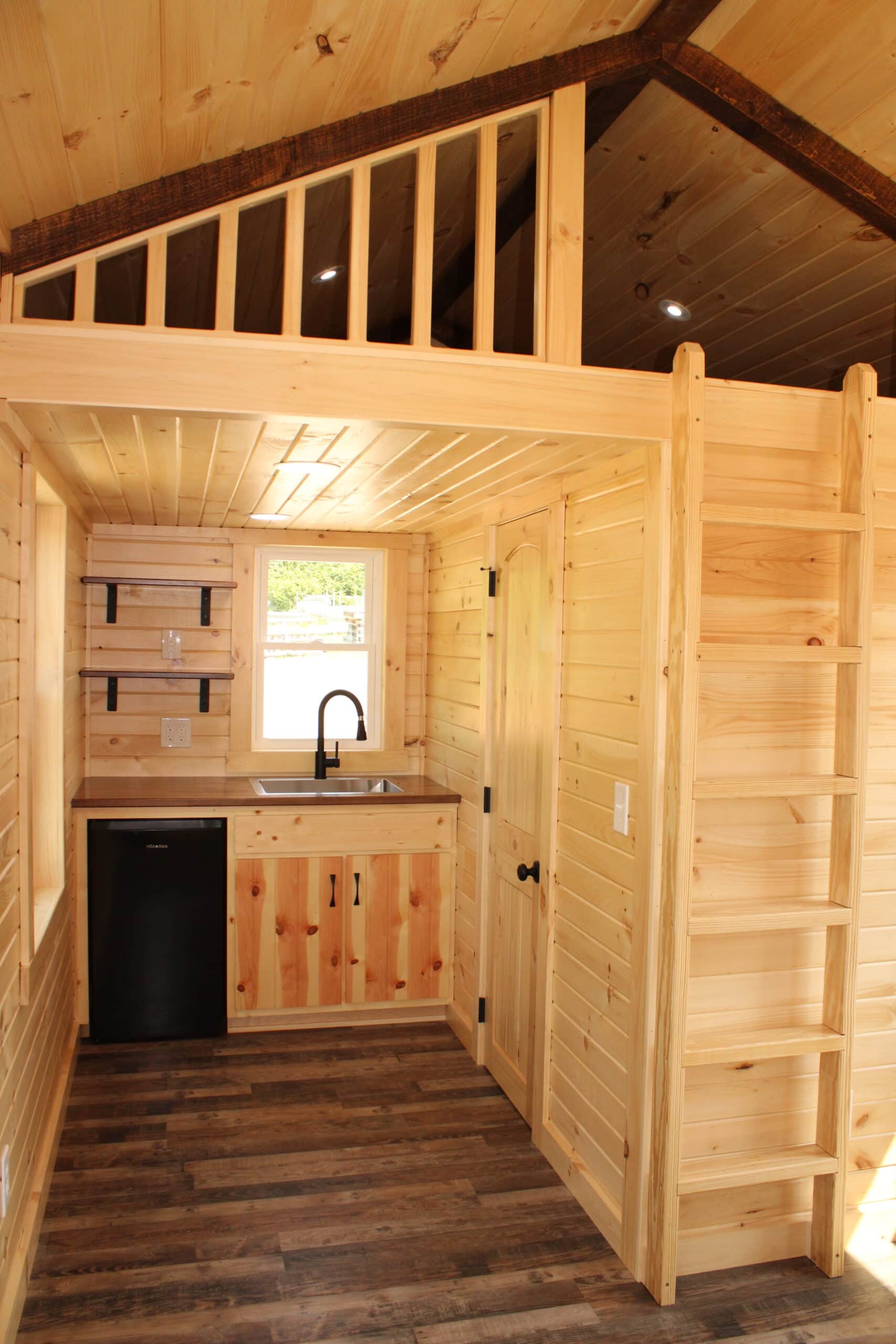

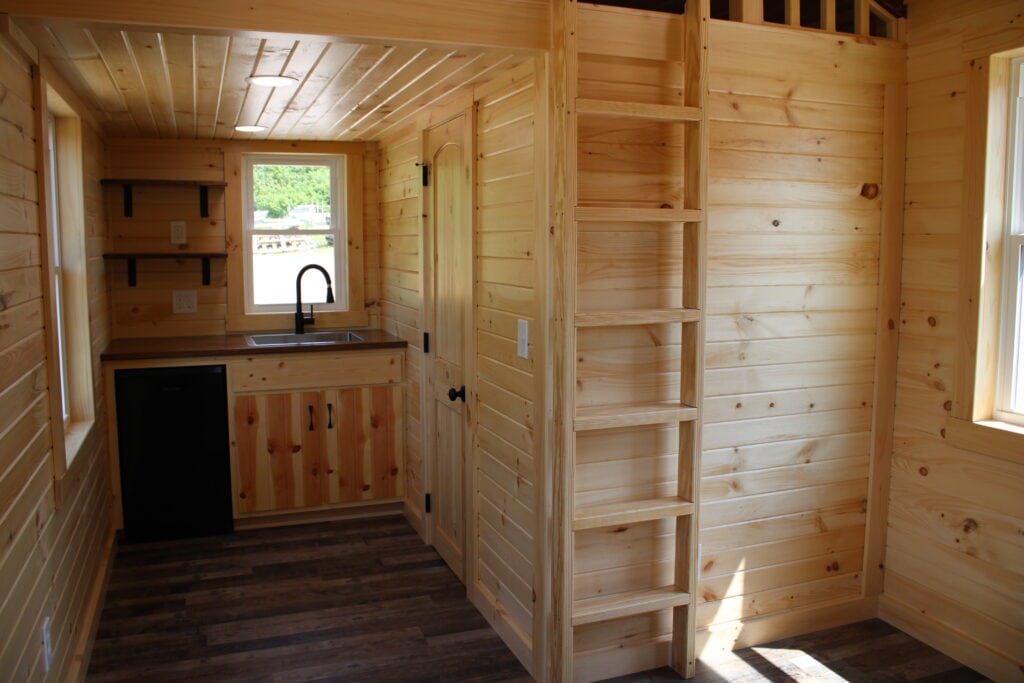

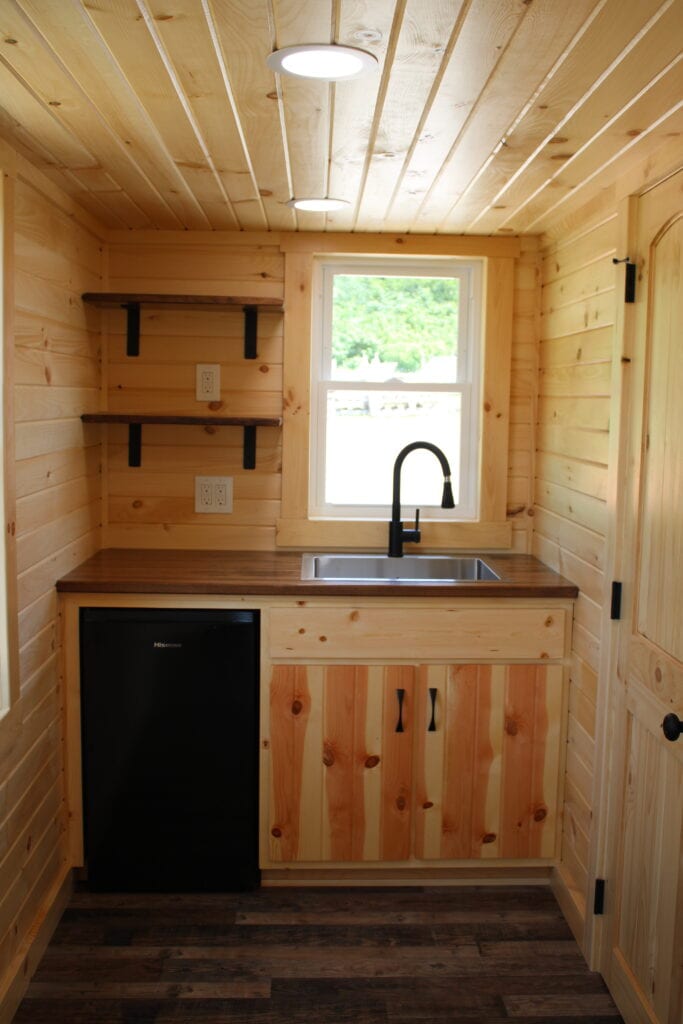

Kitchen Design

  • 2 Open Shelves
  • Custom Knotty Pine Base Cabinets w/ Flat Panel Doors & iini Fridge Compartment
  • 18” x 22” Single Bowl, Drop-In Stainless Steel Sink
  • Butcher Block Countertop
  • Matte Black Faucet & Cabinet Hardware
  • Soft Close Door Hinges & Drawer Slides
  • 2.5-cu ft Mini Fridge (Black)
  • 700 Watt Countertop Microwave

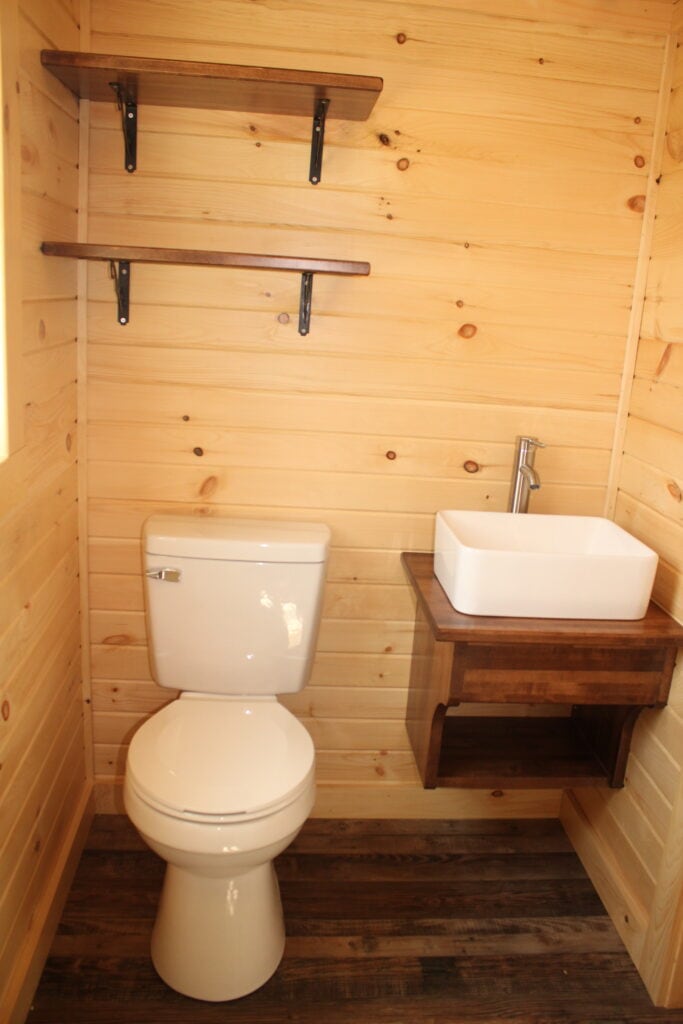

Bathroom Design

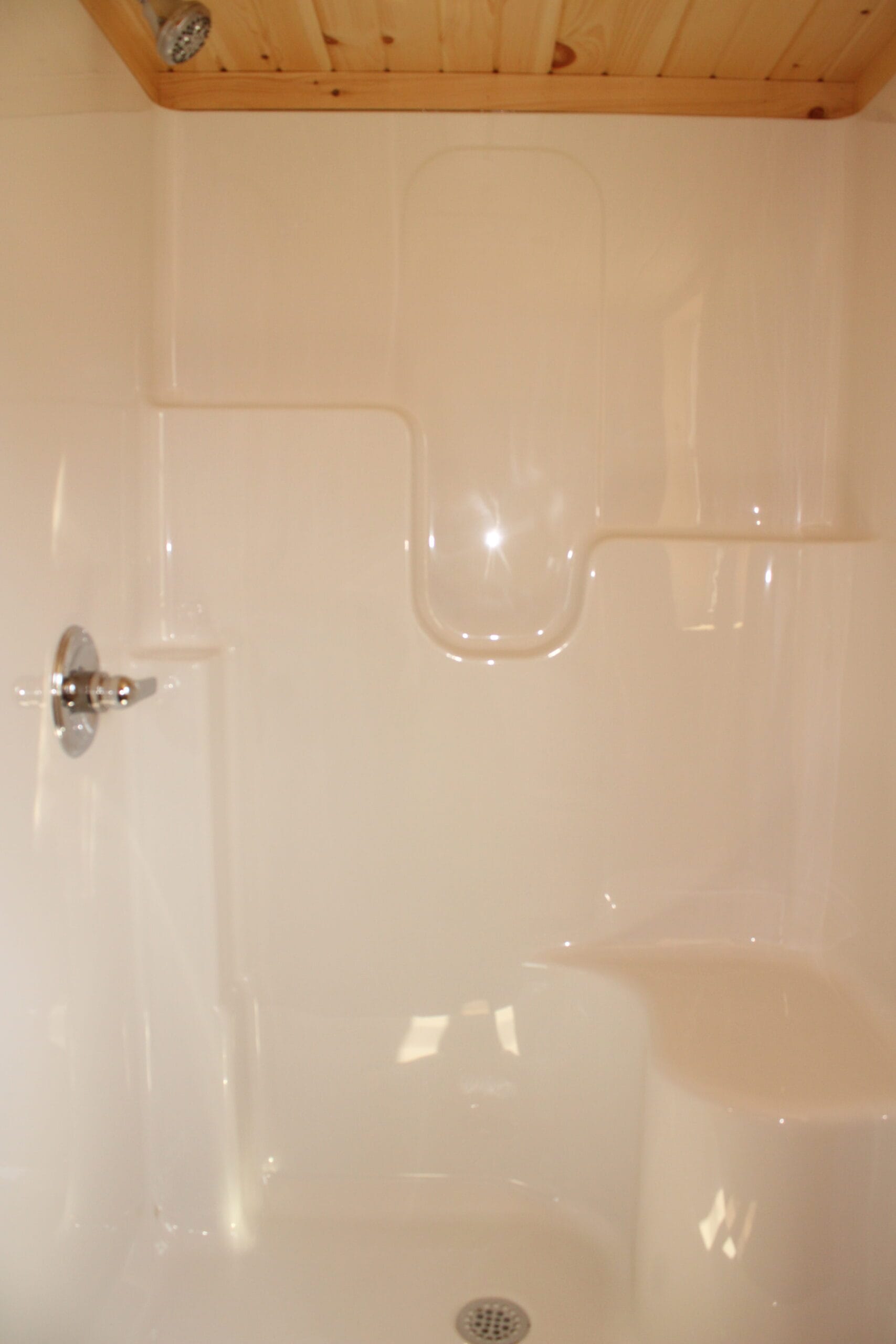

  • 3’ x 4’ Fiberglass Shower w/ Corner Seat
  • Satin Nickel Shower Head & Faucets

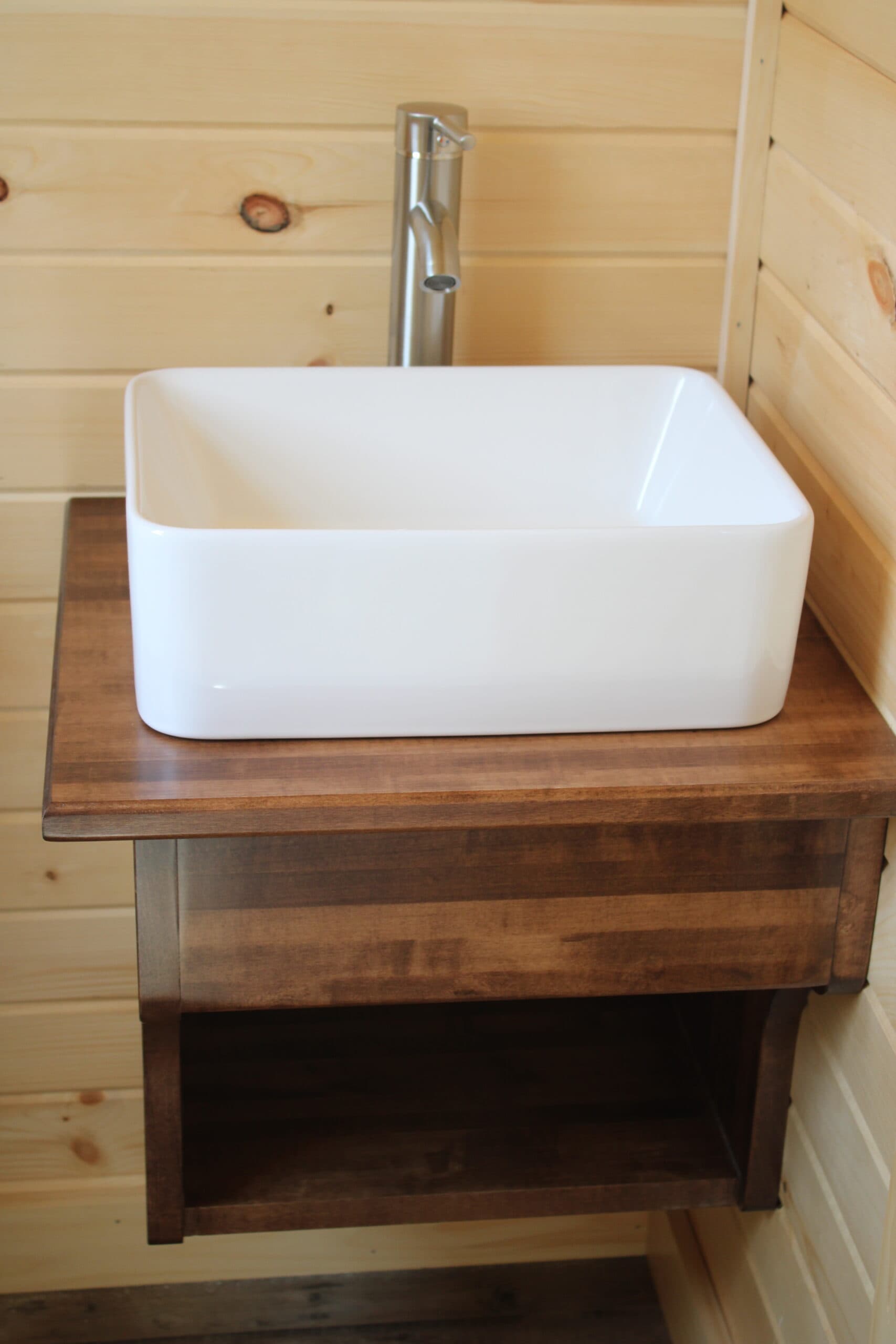

  • Birch Wall-Mount Vanity (Brown)
  • 12” x 16” Rectangular, White Ceramic Vessel Sink
  • Standard White Elongated Toilet
  • Exhaust Vent Fan w/ Light

Utilities

  • Stiebel Eltron DHX Trend Electric Tankless Water Heater
  • 15 Interior Outlets (3 GFCI)& 8 Switches w/ White Covers
  • 8 Recessed Lights
  • 1 Ceiling Fans w/ Light
  • 1 GFCI Exterior outlet w/ Cover
  • 1 Maxim 1024 Exterior Wall Sconce
  • 1 Thru Wall Circulating Fans

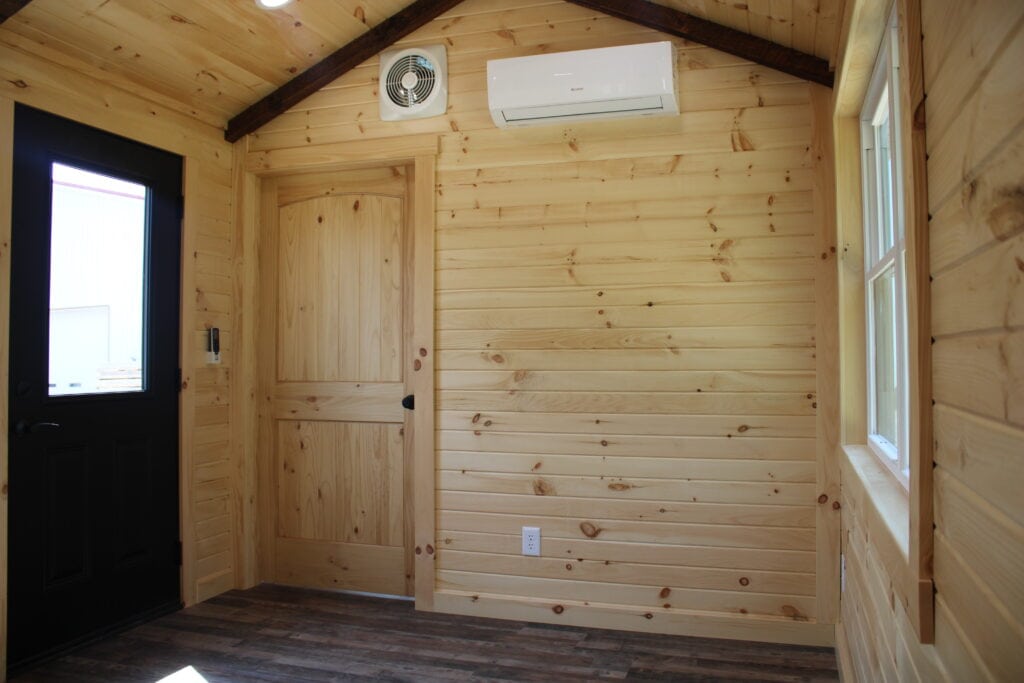

  • 1 Bosch 9,000 BTU Ductless Mini Split
  • Safety Features include, Fire Extinguisher, Smoke Alarms & Carbon Monoxide Detector
  • 100 AMP Breaker Box w/ Conduit for Direct Tie-In
  • All Plumbing Ready to tie into 3” Pipe
  • Water Line Ready to Connect to Female Garden Hose Bibb
