Custom Nova & Twilight in MI

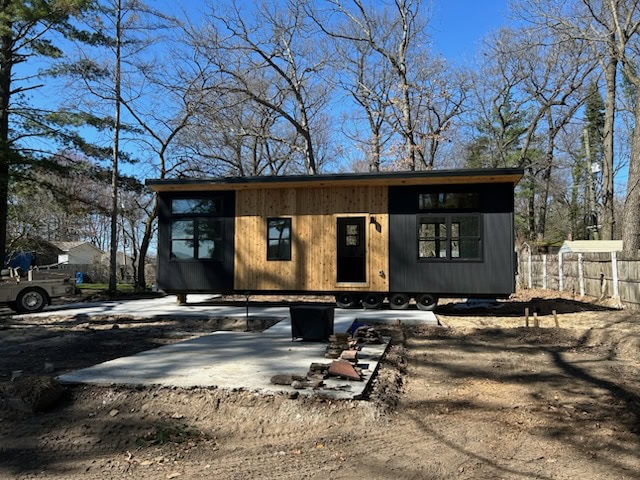

These Custom Nova and Twilight Models have found a new residence in Michigan! With matching exterior aesthetics and lots of awesome features these 2 Units now serve as the perfect summer lake houses for family vacations!

See All Past Projects

Overview

Custom Nova

  • 12’ Wide x 37’ Long Overall Dimensions (Outside Overhangs)
  • 11’ Wide x 36’ Long Building Dimensions = 396 sq ft
  • 1 Main Floor Bedrooms
  • 1 Bathroom
  • Sleeps up to 2 People
  • A Great Model for Long Term Living or Short Term Rental
  • RVIA Seal Built to ANSI A119.5 Standards



Custom Twilight

  • 12’ Wide x 37’ Long Overall Dimensions (Outside Overhangs)
  • 11’ Wide x 36’ Long Building Dimensions = 396 sq ft
  • 2 Main Floor Bedrooms
  • 1 Bathroom
  • Sleeps up to 4 People
  • A Great Model for Long Term Living or Short Term Rental
  • RVIA Seal Built to ANSI A119.5 Standards

Reserve Your Build Spot For $2,500 Down

SCHEDULE A CALL

Gallery

Specifications

Custom Nova

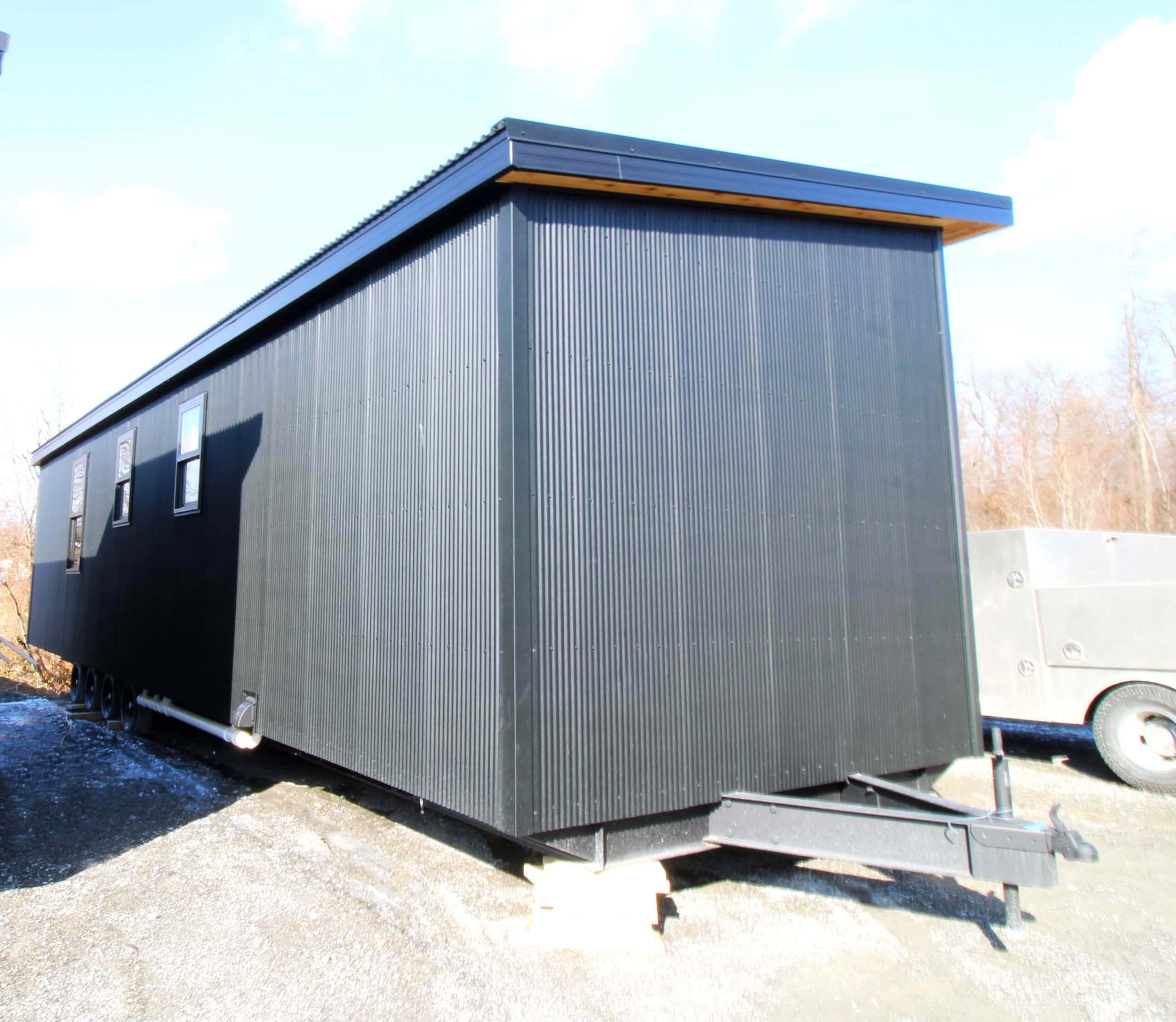

  • Trailer: Custom, Heavy-Duty Steel, 4 Axle Chassis w/ Detachable Hitch
  • 28 Gauge, ¼” Corrugated Metal Siding (Black)
  • Cedar Wood Siding Accents
  • 28 Gauge, Premier Rib Metal Roof (Black)
  • 2”x6” Roof Trusses, 24” On-Center w/ ½” OSB Underlayment & Ice Guard
  • 2”x4” Studs, 16” On-Center, Sheathing, House Wrap & Window/Seam Tape
  • 2”x6” Floor Joists, 16” On-Center, w/ ¾” OSB Subfloor
  • Anderson 100 Series, Double Pane Windows (Black)
  • Provia 36” Full Glass Entry Door (Black)
  • Matte Black Door Hardware w/ Deadbolt

Insulation

  • R13 Closed Cell Spray Foam in the Walls
  • R19 Closed Cell Spray Foam in the Floor and Ceiling

Interior Designs

  • Luxury Vinyl Plank Floor Throughout
  • Walls Finished w/ Birch Plywood (White)
  • Ceiling Finished w/ Knotty Pine T&G (Stained Dk Brown)
  • Painted Flush Interior Doors
  • Matte Black Door Hardware

Kitchen Designs

  • Custom Painted Top Cabinets w/ Microwave Compartment
  • Custom Painted U-Shaped Kitchen w/ Peninsula
  • 21” x 18” Single Bowl, Undermount Stainless Steel Sink
  • Quartz Countertop
  • Matte Black Faucet & Cabinet Hardware
  • Soft Close Door Hinges & Drawer Slides
  • 1 – 3 Light Traditional Chandelier
  • Hotpoint 9.7 Cu Ft Counter-Depth Top-Freezer Refrigerator
  • Frigidaire 1.9 Cu Ft, 24”-4 Burner, Stainless Steel, Slide-in Electric Range
  • GE 1.4 Cu Ft, 1550-Watt, Stainless Steel, 23.8” Over-the-Range Microwave
  • Frigidaire 18”, Front Control, Stainless Steel Tub, Built-in Dishwasher

Bathroom Designs

  • 3’ x 4’ Fiberglass Shower w/ Corner Seat
  • Matte Black Shower Head & Faucet
  • Painted Vanity w/ Matte Black Hardware
  • White Cultured Marble Vanity Top
  • 22” x 30” Bathroom Vanity Mirror
  • 13.5”-2 Light Transitional Vanity Light
  • Standard White Elongated Toilet
  • Exhaust Vent Fan w/ Light
  • Whirlpool Stacked Laundry Center w/ 1.6 Cu Ft Front Load Washer & 3.4 Cu Ft Dryer

Utilities

  • A.O. Smith 19 Gallon Electric Water Heater
  • 2 Ceiling Fans w/ Lights
  • 20 Interior Outlets (3 GFCI) & 14 Switches w/ Covers
  • 1 GFCI Exterior Outlet w/ Cover
  • 1 Kichler 7” Outdoor Wall Light
  • Multi Zone Bosch 18,000 BTU Ductless Mini Split
  • 100 Amp Breaker Box w/ Conduit for Direct Tie-in
  • All Plumbing Ready to Tie into 3” Pipe
  • Water Line Ready to Connect to Female Garden Hose Bibb
  • Safety Features include, Fire Extinguisher, Smoke alarms & Carbon Monoxide Detector

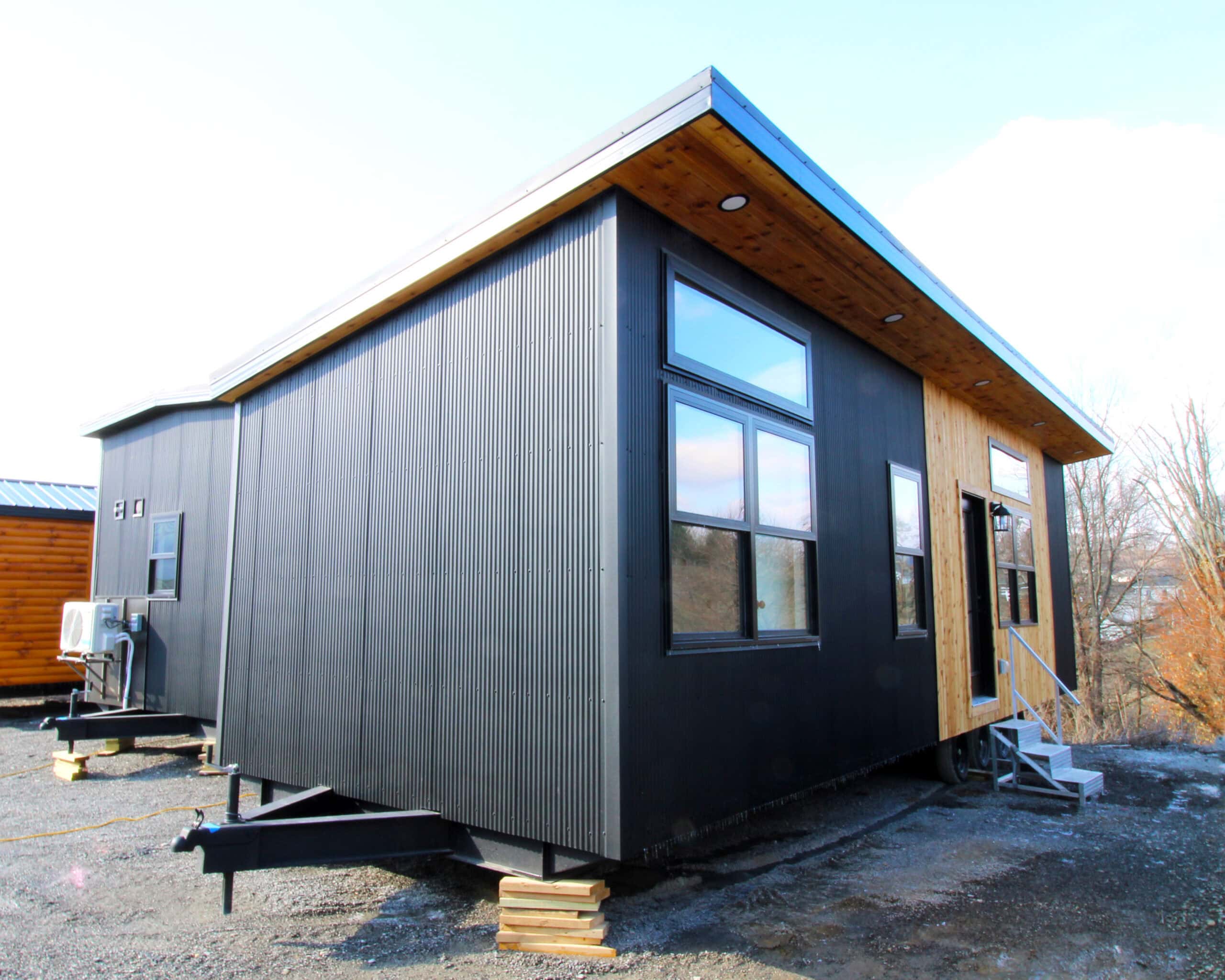

Custom Twilight

  • Trailer: Custom, Heavy Duty Steel, 4 Axle Chassis w/ Detachable Hitch
  • 28 Gauge, ¼” Corrugated Metal Siding (Black)
  • Cedar Wood Siding Accents
  • 28 Gauge, Premier Rib Metal Roof (Black)
  • 2”x6” Roof Trusses, 24” On-Center w/ 1/2” OSB Underlayment & Ice Guard
  • 2”x4” Studs, 16” On-Center, Sheathing, House Wrap & Window/Seam Tape
  • 2”x6” Floor Joists, 16” On-Center, w/ ¾” OSB Subfloor
  • Anderson 100 Series, Double Pane Windows (Black)
  • Provia 36” Full Glass Entry Door (Black)
  • Matte Black Door Hardware w/ Deadbolt

Insulation

  • R13 Closed Cell Spray Foam in the Walls
  • R19 Closed Cell Spray Foam in the Floor and Ceiling

Interior Designs

  • Luxury Vinyl Plank Floor Throughout
  • Walls Finished w/ Birch Plywood (White)
  • Ceiling Finished w/ Knotty Pine T&G (Clear)
  • Painted Flush Interior Doors
  • Matte Black Door Hardware

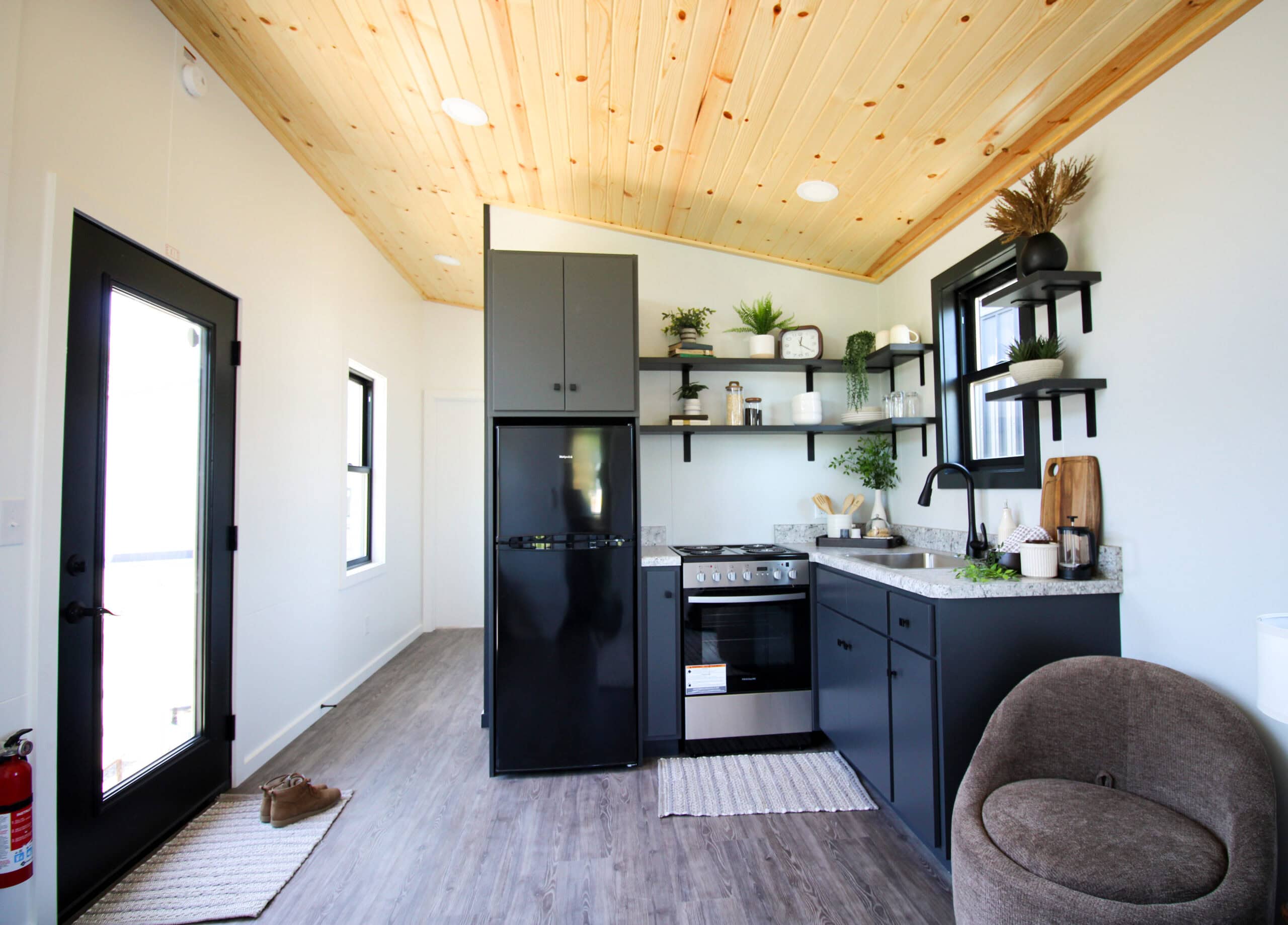

Kitchen Designs

  • Custom Painted Top Cabinets
  • Custom Painted L Shaped Kitchen
  • 21” x 18” Single Bowl, Undermount Stainless Steel Sink
  • Laminate Countertop
  • Matte Black Faucet & Cabinet Hardware
  • Soft Close Door Hinges & Drawer Slides
  • Hotpoint 9.7 Cu Ft Counter-Depth Top-Freezer Refrigerator
  • Frigidaire 1.9 Cu Ft, 24”- 4-Burner, Stainless Steel, Slide-in Electric Range

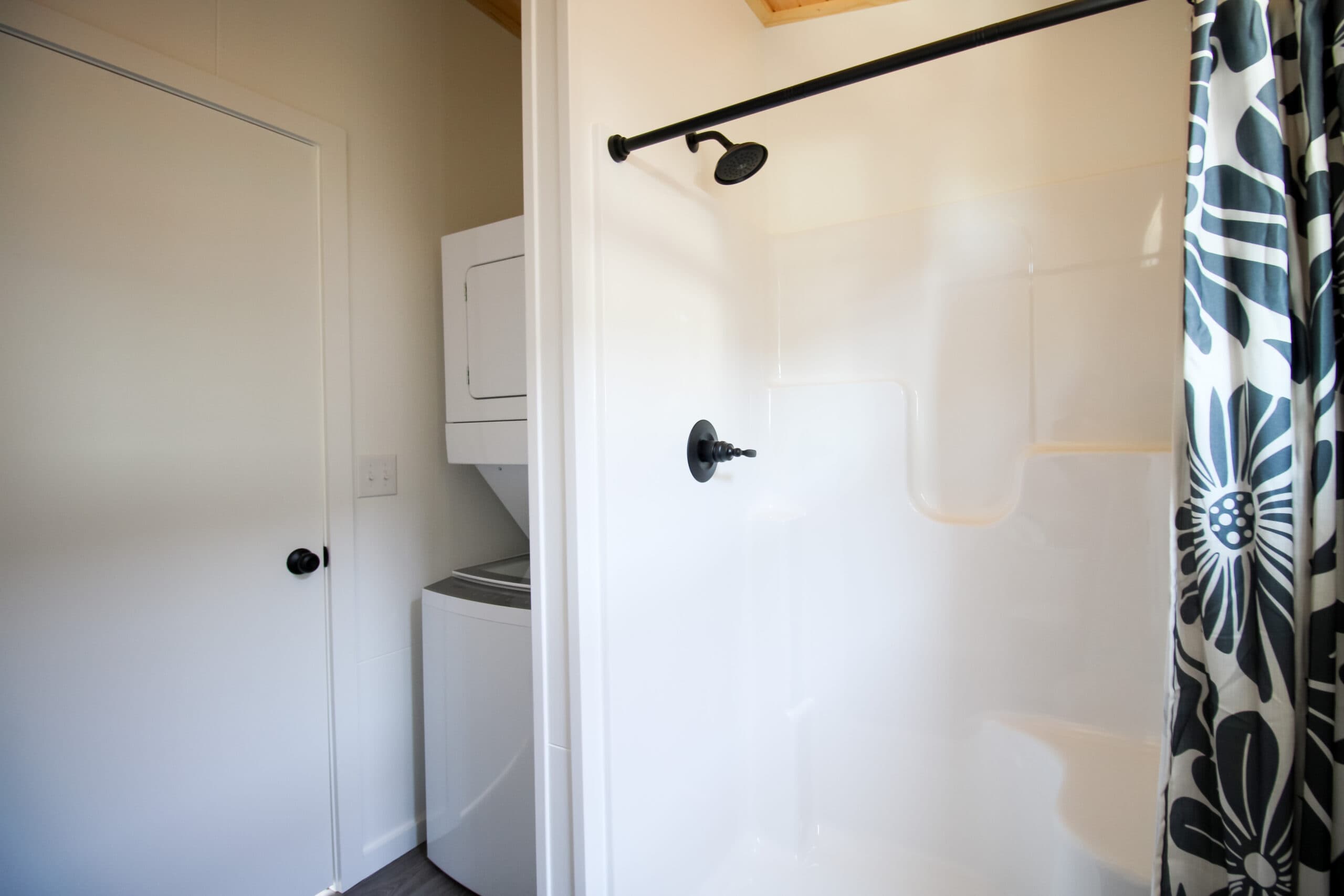

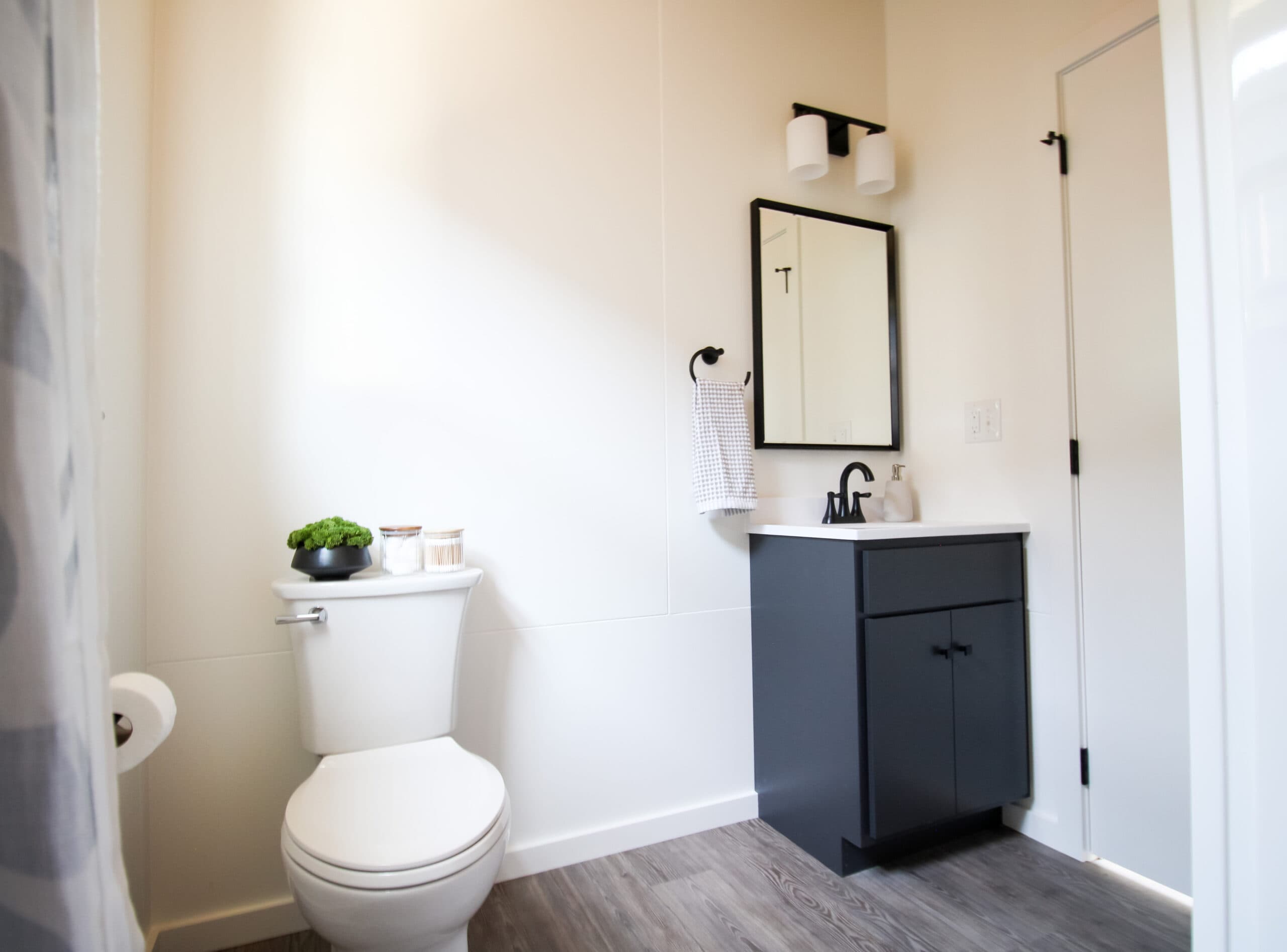

Bathroom Designs

  • 3’ x 4’ Fiberglass Shower w/ Corner Seat
  • Matte Black Shower Head & Faucet
  • Painted Vanity w/ Matte Black Hardware
  • White Cultured Marble Vanity Top
  • 22” x 30” Bathroom Vanity Mirror
  • 13.5”-2 Light Transitional Vanity Light
  • Standard White Elongated Toilet
  • Exhaust Vent Fan w/ Light
  • Whirlpool Stacked Laundry Center w/ 1.6 Cu Ft Front Load Washer & 3.4 Cu Ft Dryer

Utilities

  • A.O. Smith 19 Gallon Electric Water Heater
  • 2 Ceiling Fans w/ Lights
  • 20 Interior Outlets (3 GFCI) & 14 Switches w/ Covers
  • 1 GFCI Exterior Outlet w/ Cover
  • 1 Kichler 7” Outdoor Wall Light
  • Multi Zone Bosch 18,000 BTU Ductless Mini Split
  • 1 Through Wall Vent Fan
  • 100 Amp Breaker Box w/ Conduit for Direct Tie-in
  • All Plumbing Ready to Tie into 3” Pipe
  • Water Line Ready to Connect to Female Garden Hose Bibb
  • Safety Features include, Fire Extinguisher, Smoke alarms & Carbon Monoxide Detector
