Custom Model in MI

This beautiful custom tiny home now calls MI home. Built for off-grid living, it features a striking black metal and cedar exterior with a clean, modern interior. Inside, you’ll find custom furniture, a Rainstick recirculating shower, and an incinerating toilet. Designed with comfort and sustainability in mind, it also includes space for a sauna stove and a powerful solar setup. We enjoyed bringing this unique vision to life.

See All Past Projects

Overview

12’ Wide x 37’ Long Overall Dimensions (Outside Overhangs)
11’ Wide x 36’ Long Building Dimensions = 396 sq ft
2 Main Floor Bedrooms
1 Storage Loft
1 Bathroom
Sleeps up to 4 People
RVIA Seal Built to ANSI A119.5 Standards

Reserve Your Build Spot For $2,500 Down

SCHEDULE A CALL

Customer Review

I had a wonderful experience working with John and Great Lakes Tiny Homes to implement a custom design. The home was designed with off-grid features like solar power and a propane-powered toilet, so it was not the standard model in any means. Every piece of the home was custom and hand-designed in CAD. Which the Great Lakes Tiny Home team took-in, cleaned-up, and produced to the exact spec of the design. Which included some tricky custom furniture and other high-end features. All executed perfectly and tied together in a truly unique home with unparalleled functionality. Perhaps most interestingly, the ability to hitch-up the home and move it at will while it maintains power and functionality. The only issue with the home with the brakes on the chassis. Other than that, the home has been awesome. Truly a testament to the power of designing a custom home and having it built in a controlled facility.

Samuel Ellis

Custom Model in MI

Gallery

Specifications

Overview

12’ Wide x 37’ Long Overall Dimensions (Outside Overhangs)
11’ Wide x 36’ Long Building Dimensions = 396 sq ft
2 Main Floor Bedrooms
1 Storage Loft
1 Bathroom
Sleeps up to 4 People
RVIA Seal Built to ANSI A119.5 Standards

Exterior Designs

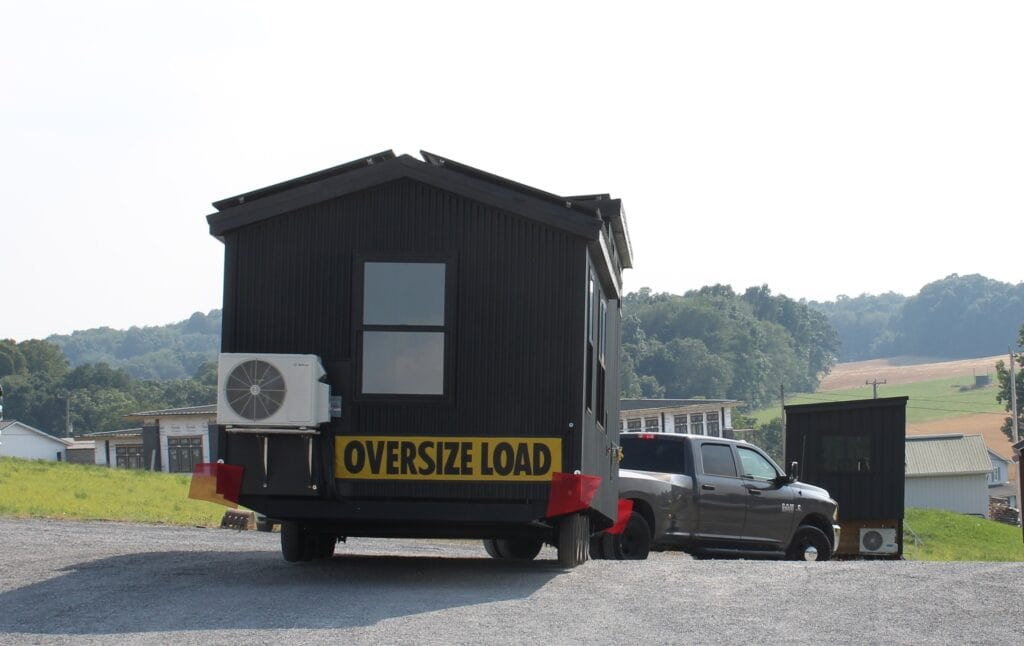

Trailer: Custom, Heavy Duty Steel, 4-Axle Chassis w/ Detachable Hitch

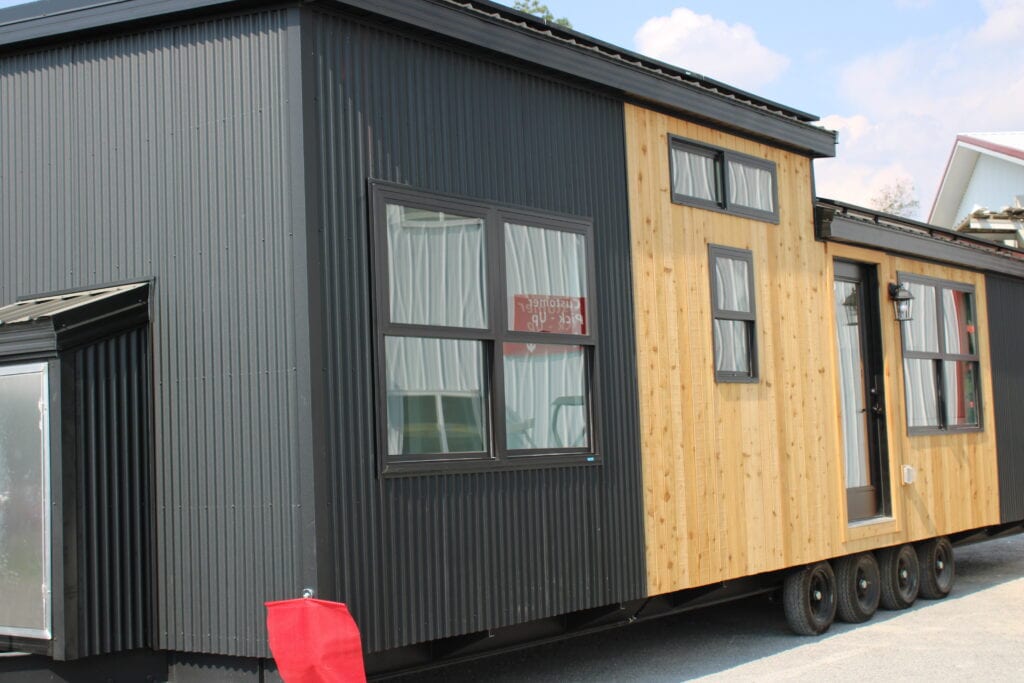

¾” Corrugated Metal Siding (Black)
Cedar Wood Accents around Entrance Area
28 Gauge, Premier Rib Metal Roof (Black)
2”x6” Roof Trusses, 24” On-Center w/ 7/16” OSB Underlayment & Ice Guard
2”x4” Studs, 16” On-Center w/ ½” OSB Sheathing, House Wrap & Window/Seam Tape
2”x6” Floor Joists, 16” On-Center w/ ¾” OSB Subfloor

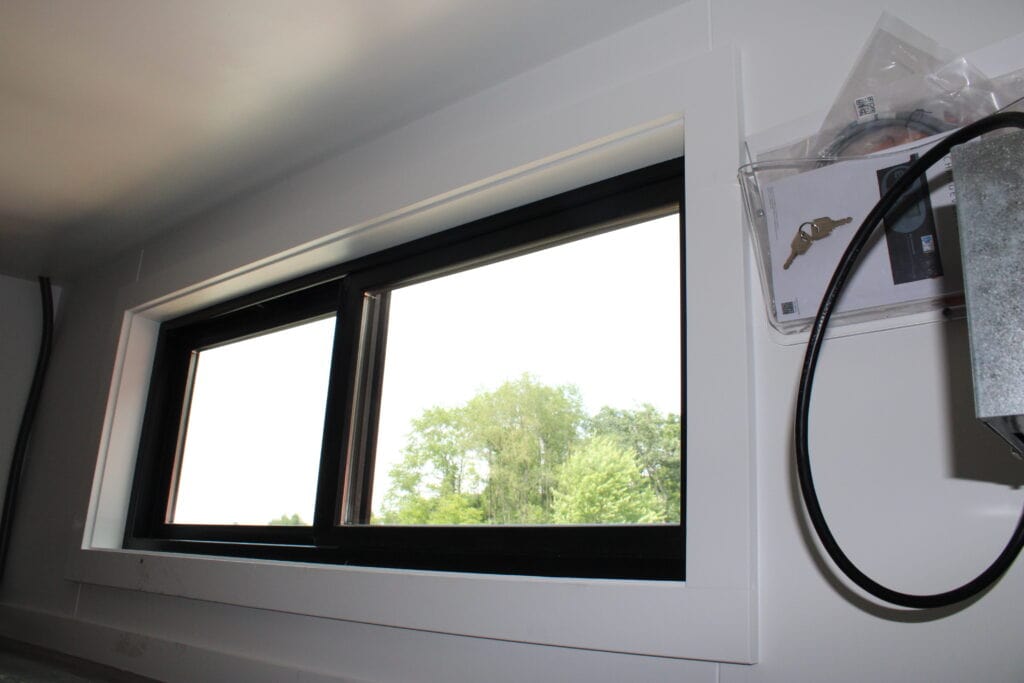

Anderson 100 Series, Double Pane Windows (Black)
Provia 36” Full Glass Entry Door (Black)
Matte Black Door Hardware w/>Deadbolt

Insulation

R13 Batt Insulation in the Walls
R1Batt Insulation in the Floor & Ceiling

Kitchen, Living & Bedroom Designs

Luxury Vinyl Plank Floor
Walls & Ceiling Finished in ½” Birch Plywood (Painted White)
Solid Doors (Painted White)
Matte Black Door Hardware
30” Kucht Gemstone Professional Duel Fuel Range
Custom Open Shelf Kitchen Cabinetry

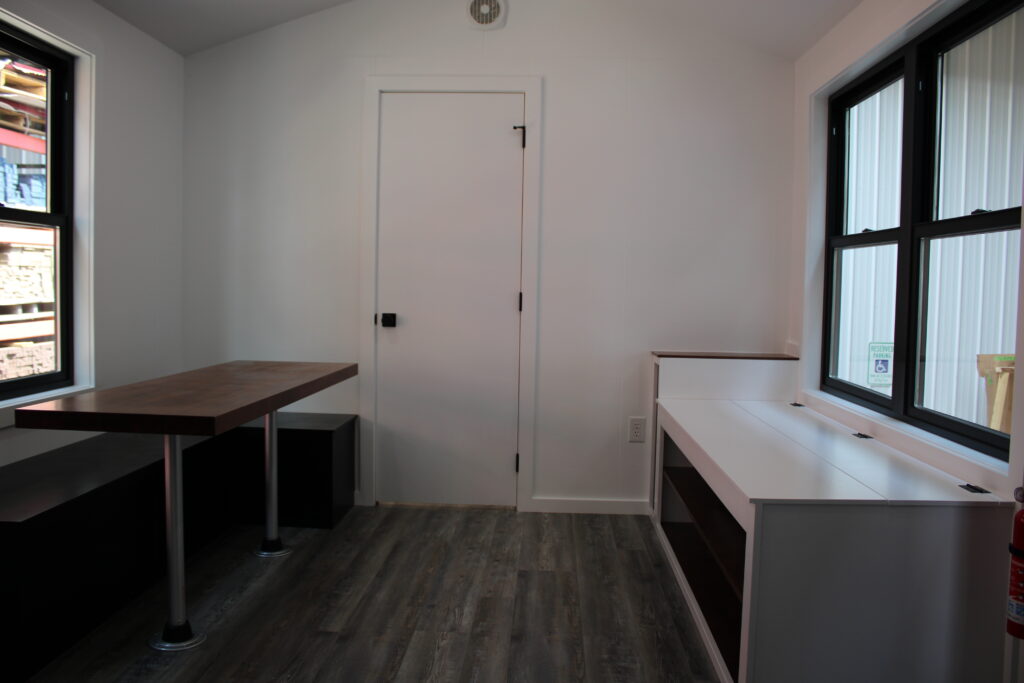

Custom Removable Table
Custom Bench w/ Sliding Doors for Storage Beneath Seat

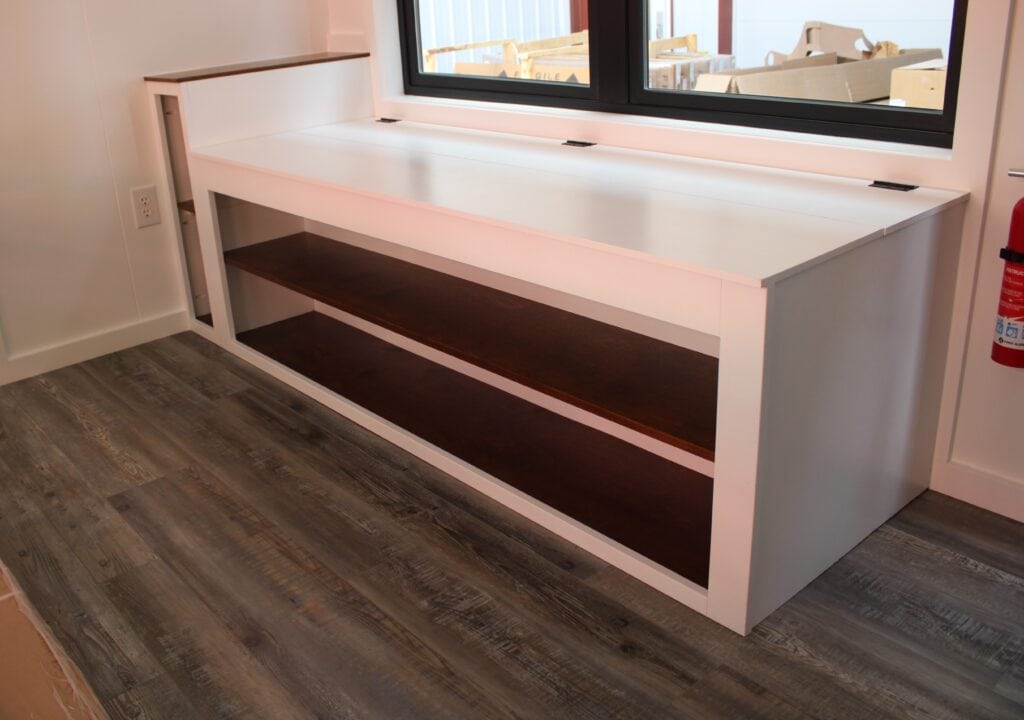

Custom Day Bed w/ Built-in Bookshelf and Hinged Lid for Storage

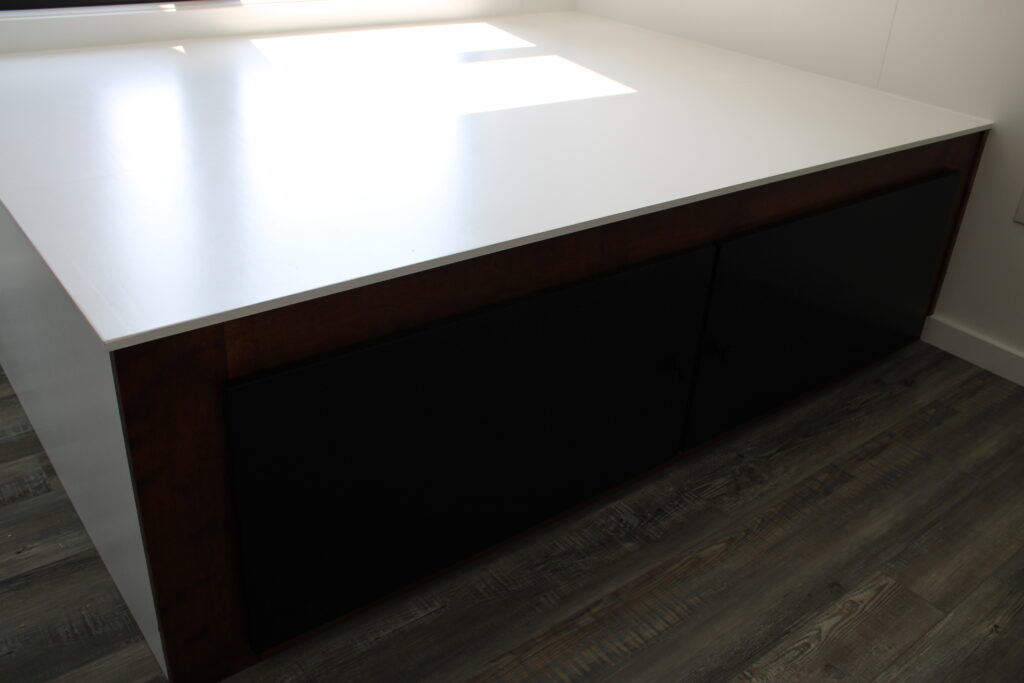

2 Custom Built-in Bed Frames w/ Doors for Storage

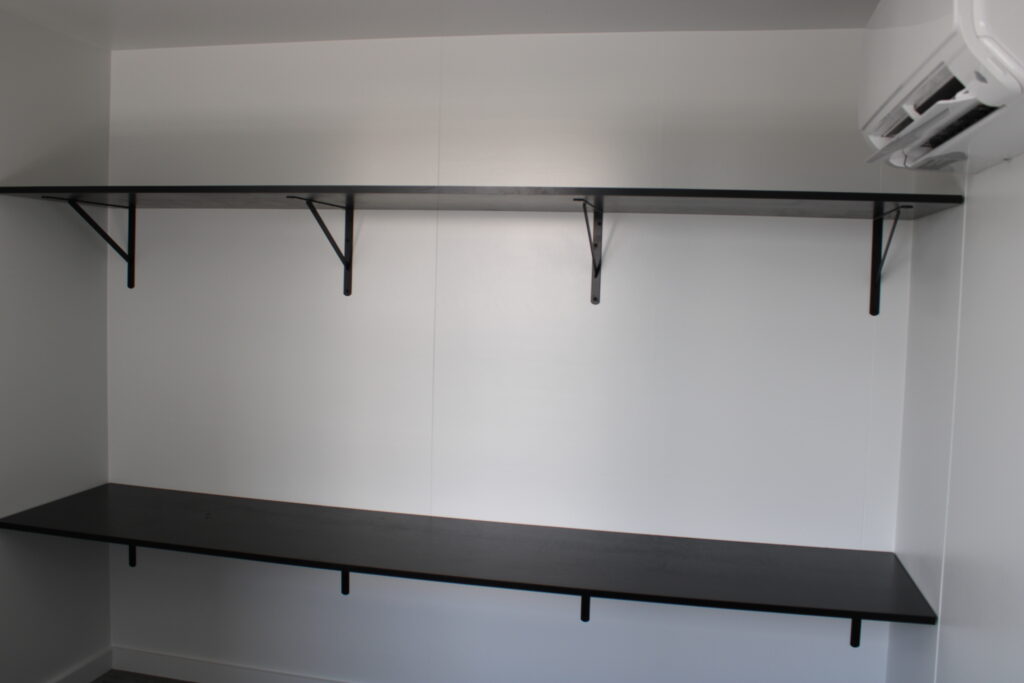

Custom Open Shelves

Bathroom Designs

7” T&G Knotty Pine Walls and Ceiling
Tile on Wall behind Shower
3 Step, Epoxy Coated Floor
Cinderella Propane Incinerating Toilet

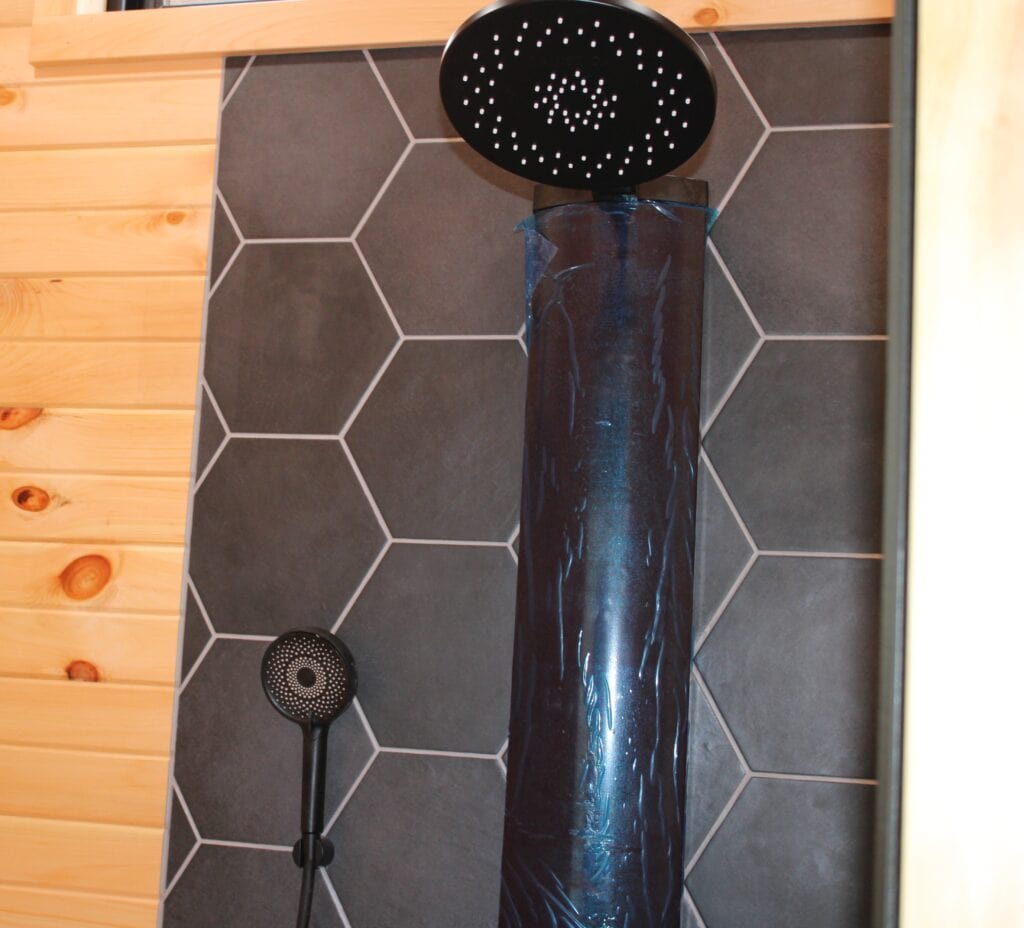

Rainstick Recirculating Shower
Fresh Water Tank

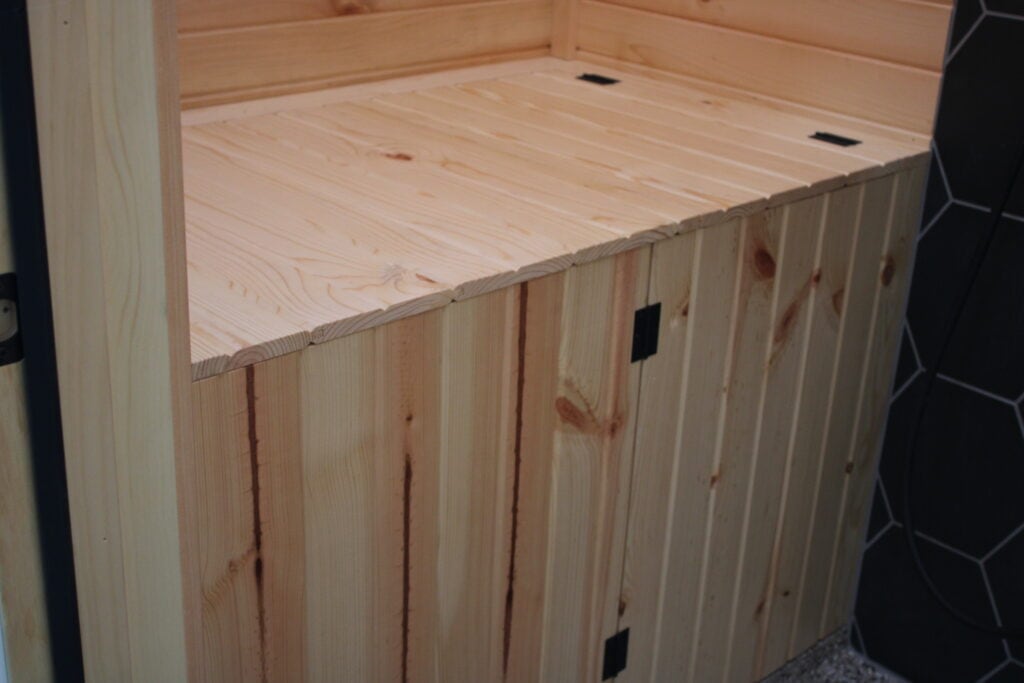

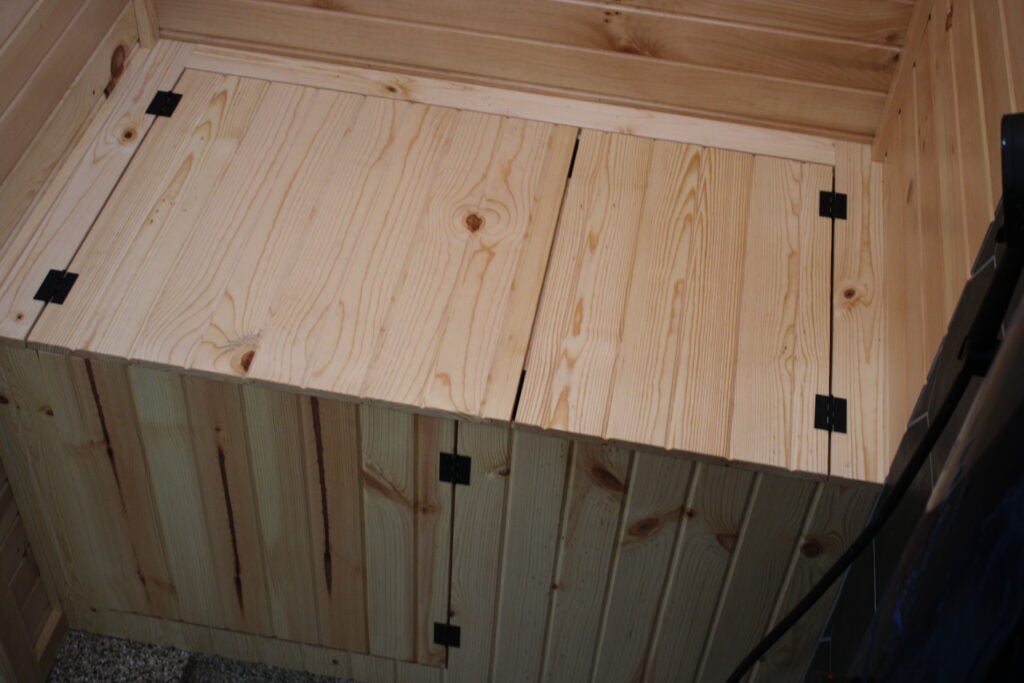

Custom Pine Cabinetry
Exhaust Vent Fan w/ Light

Utilities

Tankless Water Heater
2 Ceiling Fans w/ Lights (Black)
Interior Outlets & Switches w/ Black Covers
1 GFCI Exterior outlet w/ Cover
1 Maxim 1024 Exterior Wall Sconce
2 Thru Wall Circulating Fans
Multi Zone Bosch 18,000 BTU Ductless Mini Split
Safety Features include, Fire Extinguisher, Smoke Alarms & Carbon Monoxide Detector

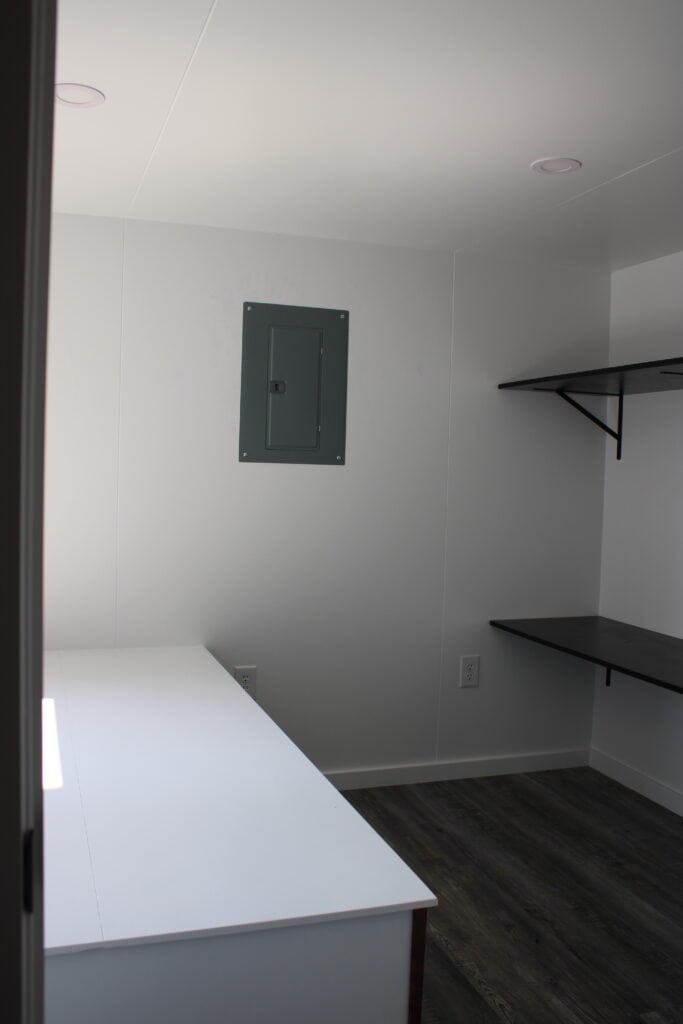

100 AMP Breaker Box
Solar System w/ Battery Pack and Generator Backup Plug
