Custom Grizzly in Rock Island, TN

Overview

• 12’ 8” Wide x 44’ Long Overall Dimensions (Outside Overhangs)
• 11’ 3” Wide x 34’ 6” Long Building Dimensions = 388 sq ft
• 1 Main Floor Bedroom
• 1 Loft Bedroom
• 1 Bathroom

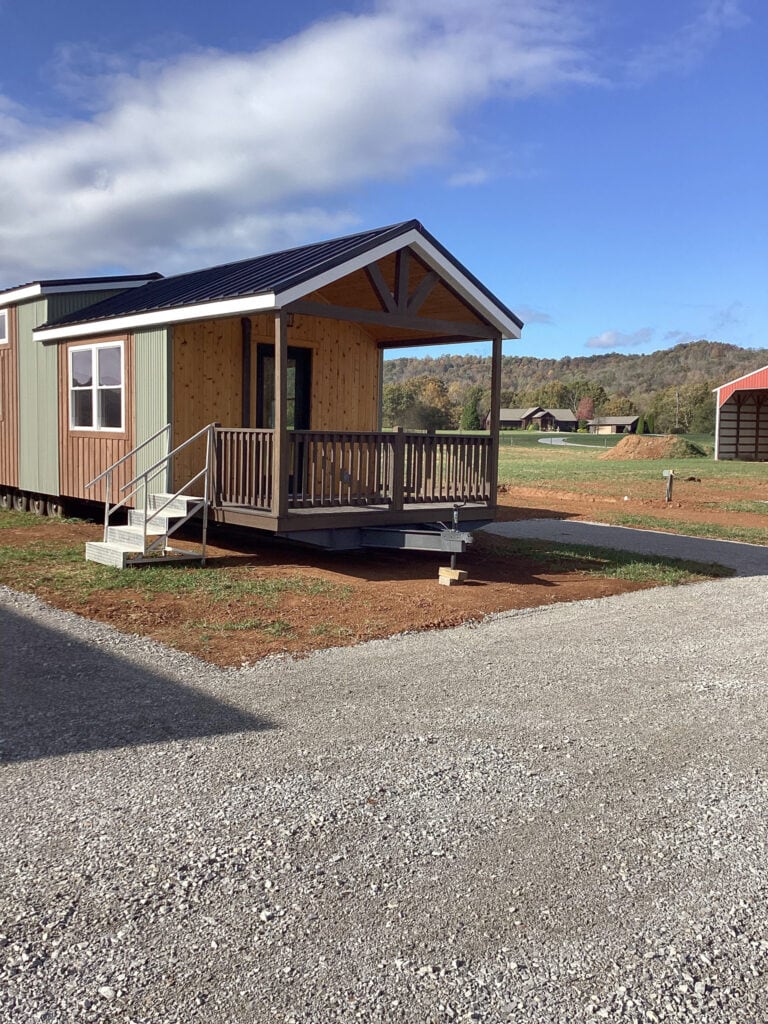

• 11’ 3” x 8’ Porch w/ Timber Frame
• Sleeps up to 4 People
• RVIA Seal Built to ANSI A119.5 Standards

Exterior Designs

• Trailer: Custom, Heavy Duty Steel, 4-Axle Chassis w/ Detachable Hitch
• Pine Board & Batten Siding & Trim (Stained)
• 1/4″ Corrugated, 28 Gauge Metal Accents (Aspen Color)
• 28 Gauge, Premier Rib Metal Roof (Black Color)
• 2”x6” Roof Trusses, 24” On-Center w/ 7/16” OSB Underlayment & Ice Guard
• 2”x4” Studs, 16” On-Center w/ 7/16” OSB Sheathing, House Wrap & Window/Seam Tape
• 2”x6” Floor Joists, 16” On-Center w/ ¾” OSB Subfloor
• Anderson 100 Series, Double Pane Windows (White)
• Provia 36” Full Glass Entry Door (Black)
• Matte Black Door Hardware w/Deadbolt

Insulation

• R13 Batt Insulation in the Walls
• R19 Batt Insulation in the Floor & Ceiling

Interior Designs

• Luxury Vinyl Plank Floor Throughout

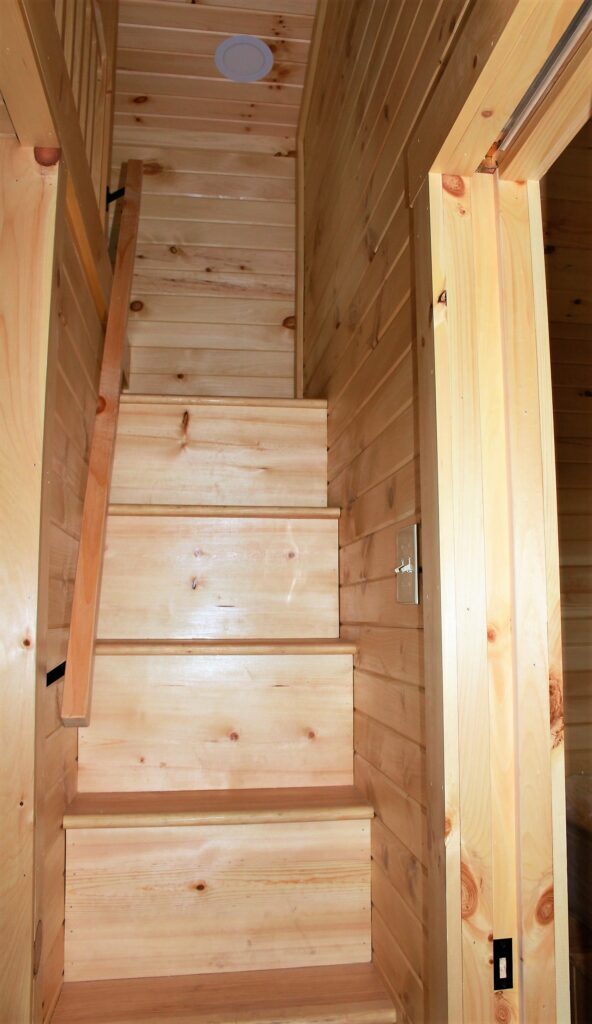

• Walls & Ceiling Finished in 7” T&G Knotty Pine Barn Siding (Clear Finished)
• Solid Pine Panel Doors
• Matte Black Door Hardware

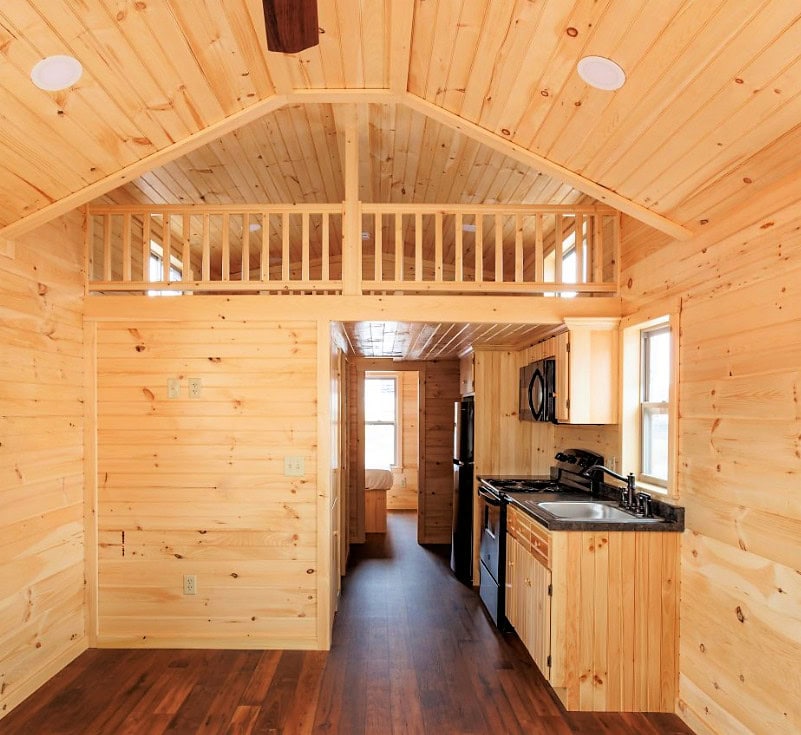

Kitchen Designs

• Custom Knotty Pine Top Cabinets w/ Microwave Compartment & T&G Doors
• Custom Knotty Pine Base Cabinets w/ T&G Doors
• 18” x 22” Single Bowl, Drop-In Stainless Steel Sink
• Laminate Countertop (Labrador Granite)
• Matte Black Faucet & Cabinet Hardware
• Soft Close Door Hinges & Drawer Slides
• Hotpoint 30”- 4 Burner, Cu Ft Freestanding Electric Range
• Hotpoint 1.6 Cu Ft 1000-Watt Over-the-Range Microwave (Black)
• Hotpoint 9.7 Cu Ft Counter-Depth Top-Freezer Refrigerator

Bathroom Designs

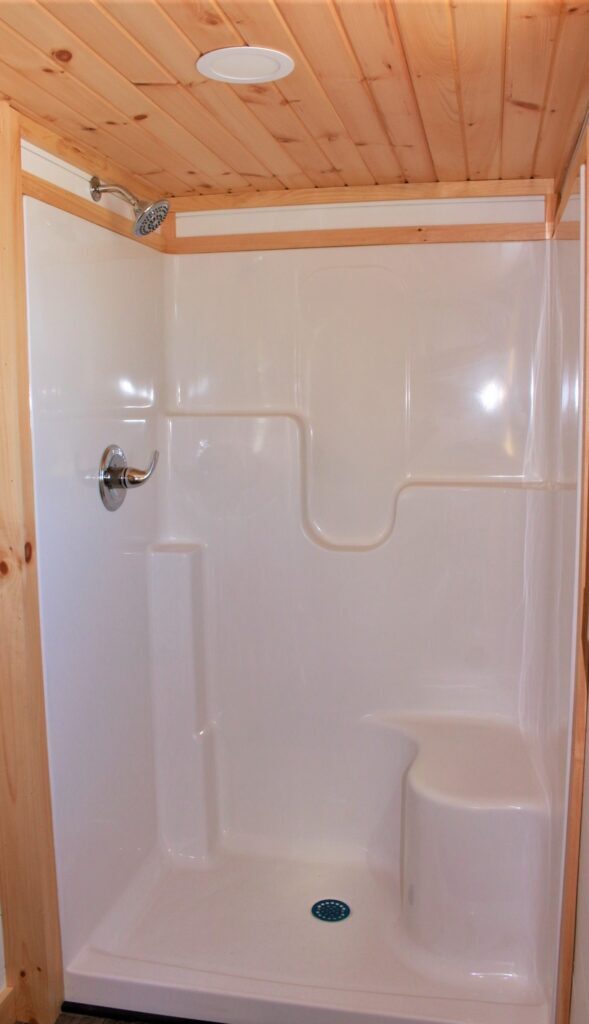

• 3’ x 4’ Fiberglass Shower w/ Corner Seat
• Satin Nickel Shower Head & Faucet
• Knotty Pine Vanity & Top Cabinets w/ Matte Black Door Hardware & Faucet
• White Porcelain Countertop
• Standard White Elongated Toilet
• Exhaust Vent Fan w/ Light

Utilities

• A.O Smith 19 Gallon Hot Water Tank
• 19 Interior Outlets (7 GFCI)& 11 Switches w/ Ivory Covers
• 14 Recessed Lights
• 1 GFCI Exterior outlet w/ Cover
• 1 Maxim 1024 Exterior Wall Sconce
•  Frost Resistant Exterior Faucet
• 1 Thru Wall Circulating Fans
• 2 Ceiling Fans w/ Lights
• 1 Bosch 12,000 BTU Ductless Mini Split
• Washer/Dryer Hookup
• Safety Features include, Fire Extinguisher, Smoke Alarms & Carbon Monoxide Detector
• 100 AMP Breaker Box w/ Conduit for Direct Tie-In
• All Plumbing Ready to tie into 3” Pipe
• Water Line Ready to Connect to Female Garden Hose Bibb
