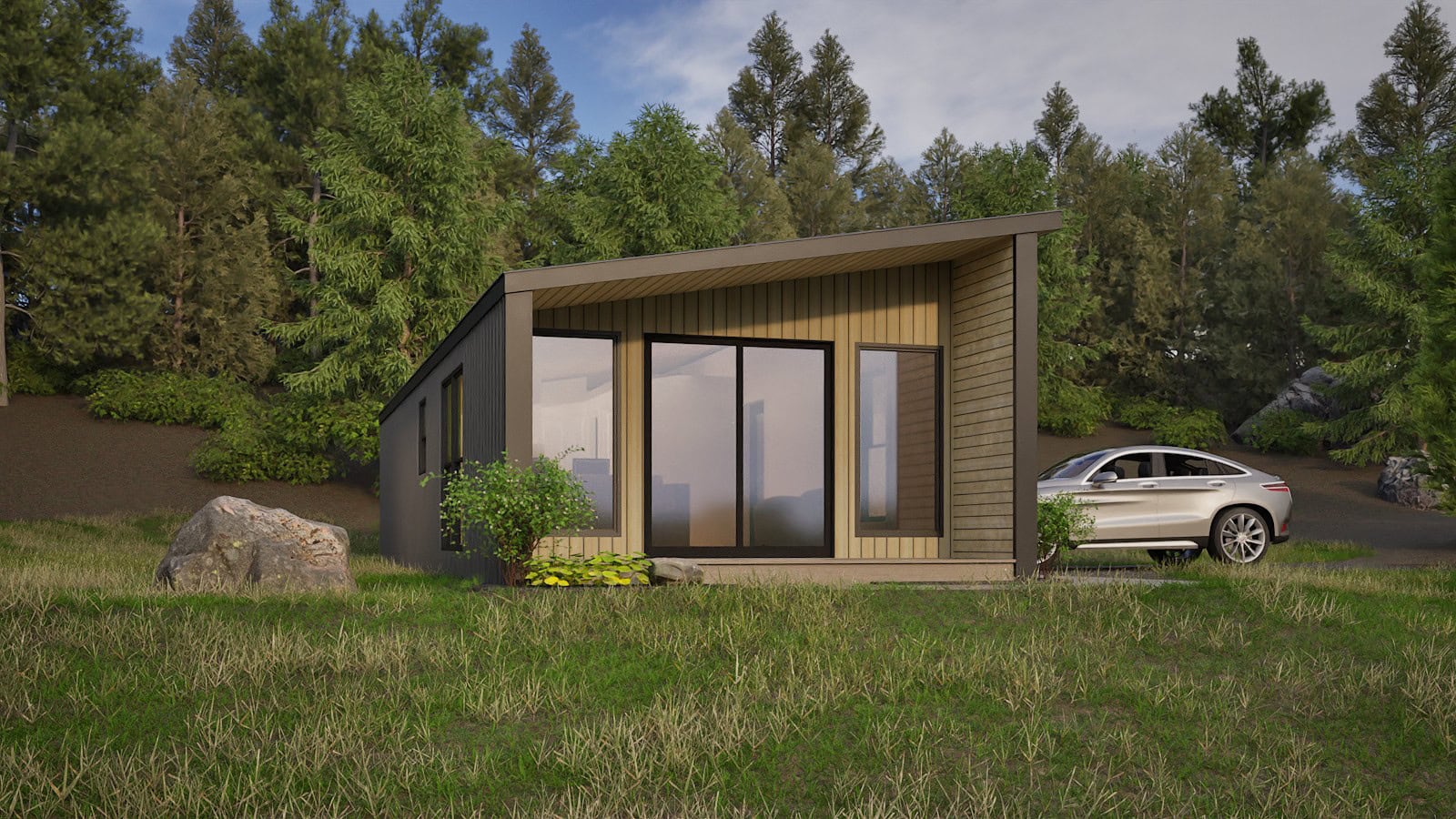

The Marengo

Overview

• 16’ wide x 44’ long overall dimensions (outside overhangs)
• 15’ wide x 40’ long building dimensions = 600 sq ft
• 1 first floor bedroom
• 1 full bathroom
• 15’ x 4’ Covered Porch
• Modular certified build to International Residential Code (IRC) standards
• Build for a crawl space or basement foundation (foundation by others)

Exterior Designs

• 2 x 8 floor joist 16” o/c with ¾” OSB subfloor
• 2 x 6 exterior walls 16” o/c studs with 7/16” OSB subsiding and house wrap
• 2 x 4 interior walls 16” o/c studs
• 2 x 8 rafters 24” o/c 2/12 roof pitch
• Roof sheathing ½” OSB with underlayment & ice guard
• Premier standard rib textured metal roof – 28 gauge (color TBD)
• Premier standard rib textured metal siding – 28 gauge (color TBD)
• Aluminum soffit & fascia (color TBD)
• Anderson 100 series, double pane single hung windows (black)
• Provia 36” full glass entry door (color TBD)
• Matte black door hardware w/ deadbolt
• Sliding patio door (black)

Porch

• Treated wood decking (unfinished)
• Cedar walls and ceiling (clear finish)

Insulation

• R19 batten insulation in the walls
• R38 batten insulation in the ceiling

Interior Designs

• Luxury vinyl plank floor throughout (color TBD)
• ½” Birch plywood on walls and ceiling (painted white)
• Flush solid core doors (painted white)
• Matte black door hardware

Kitchen Designs

• Custom cabinets per drawings with flat panel doors (painted color TBD)
• Single bowl, drop-In stainless steel sink 18” x 22”
• Laminate countertop (color TBD)
• Matte black faucet & cabinet hardware
• Soft close door hinges & drawer slides

Bathroom (Main)

• Custom vanity with cultured marble top & double bowl sink (painted color TBD)
• Fiberglass one piece tub/shower combo 3’ x 5’ (white)
• Faucets & cabinet hardware (matte black)
• Standard elongated toilet (white)
• Exhaust vent fan with light combo
• Vanity mirror
• Vanity light
• Towel bars, toilet paper holder (matte black)
• Shower curtain rod (matte black)

Utilities

• Hot water tank/heater 50 gallon electric
• Ceiling fans w/ lights 1 in bedroom, 1 living room (color TBD)
• Standard per code Interior outlets, switches, and GFCI receptacle (white covers)
• Recessed lights throughout
• Exterior outlet w/ cover one by each entry door
• Exterior wall light one by each entry door (black)
• Frost resistant exterior faucet one on back of house
• Bosch ductless Mini Split – 1 outside unit 2 inside heads
• Washer/dryer hookup
• Safety features per code, fire extinguisher, smoke alarms & carbon monoxide detector
• 200 AMP breaker box w/ conduit for direct tie-In
• All plumbing drain lines ready to tie into 3” pipe
• Pex water lines ready to connect to main water supply

Optional; Install Package

We treat every home we build like it’s our own. Our in-house crew carefully crafts each home and personally installs it on-site, ensuring quality and care every step of the way. When you work with us, you’re not just getting a home — you’re getting a team that’s with you from start to finish.

• The below items are not included in the above prices – this is a general idea of the cost, for delivery, crane services, setting the home, and on-site work — from completing the interior and exterior to making sure you’re completely satisfied with your home before we leave, cost can range from $35,000 to $75,000 depending on the locations, permitting, and local requirements.











• Corrugated metal exterior siding ¼” ridges (color TBD) + $2,200
• Corrugated metal exterior roof ¼” ridges (color TBD) + $1,500
• Premier legacy rib textured exterior roof + $800
• Vinyl board & batten exterior siding 8” wide (color TBD) + $2,700
• Log exterior half round siding (stained color TBD) + $6,750
• Cedar porch walls and ceiling + $4,900
• Trex composite porch decking floor (color TBD) + $2,500
• Closed cell spray foam insulation, walls R19 ceiling R38 + $13,300
• Anderson 100 series windows (black) + $2,500
• Basement stairs yellow pine + $2,500
• Pine 2 panel interior doors (color TBD) + $1,500
• Pine T&G interior walls (clear finish) + $9,000
• Pine T&G interior ceiling (clear finish) + $3,900
• Pine T&G interior ceiling (dark stain finish) + $4,600
• Poplar nickel gap interior walls (painted) + $21,000
• Custom cabinets, kitchen and bathroom (painted) + $700
• Quartz kitchen countertops (color TBD) + $3,200
• Butcher block kitchen countertops stained (color TBD) + $1,225
• Butcher block bathroom vanity countertops stained (color TBD) + $500
• Custom tile shower, fiberglass base, tile walls, and glass doors + $6,800
• Tile backsplash kitchen (subway tile white) + $3,250
• Standard appliance package – range, microwave, refrigerator, dishwasher, stackable washer/dryer (+$7,700)
• Fireplace electric or gas (Available on request)
• Tankless hot water heater (Available on request)
• In floor radiant hot water heat (Available on request)
• Ethernet wiring (Available on request)
• Additional recessed lights (Available on request)
• Internal blinds in the entry doors (Available on request)
• Custom window blinds (Available on request)
• Shower doors (Available on request)
• Gutters and downs spouts (Available on request)
