A-Frame Luxe

Overview

•  13’9″ wide x 43’6” long (overall dimensions)
• 13’6” wide x 31’6” long = 395 sq ft
• 13’6” x 8’ loft = 108 sq ft
• 14’ x 11’ covered porch
• 1 main floor bedroom plus a loft for an extra bedroom or storage
• 1 full bathroom
• RVIA seal built to ANSI A119.5 standards
• Built on a Trailer/Chassis – heavy-duty steel with detachable hitch

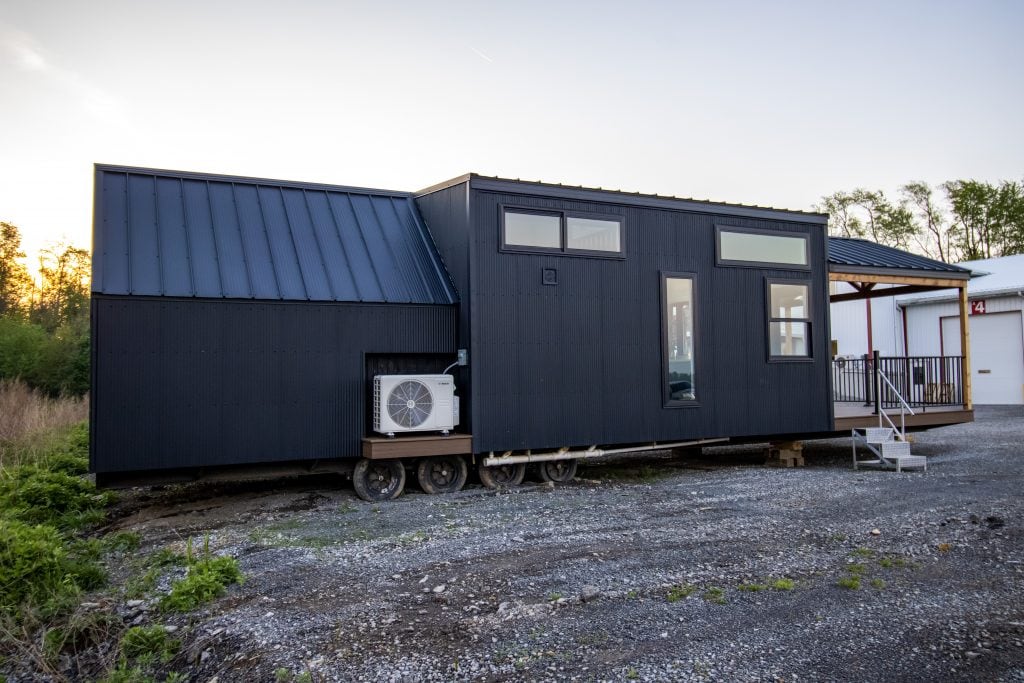

Exterior Designs

• Premier legacy rib textured exterior roof
• Corrugated metal exterior siding ¼” ridges
• 2”x 6” roof rafters, 24” on-center w/ 1/2” OSB underlayment & ice guard
• 2”x 4” studs, 16” o/c w/ 7/16” OSB sheathing, house wrap & window/seam tape
• 2”x 6” floor joists, 16” on-center w/ ¾” OSB subfloor
• Anderson 100 series, double pane single hung windows (Black)
• Large custom windows with egress access on A-Frame end
• Cedar wood accents around A-Frame picture window (clear finish)
• Provia 60” full glass french entry door (black)
• Matte black door hardware w/ deadbolt

Porch

• Cedar porch posts and beams (clear finish)
• Aluminum deck railing (black)
• Composite porch decking floor
• Cedar on porch wall and ceiling (clear finish)

Insulation

• R19 closed cell insulation floor & ceiling

Interior Designs

• Luxury vinyl plank floor throughout
• Poplar nickel gap interior walls – kitchen living room
• Pine T&G interior ceiling – kitchen living room
• Bedroom Walls & ceilings ½” birch plywood
• Poplar trim package with 2 panel interior doors
• Matte black door hardware
• Queen bed frame with drawers for storage

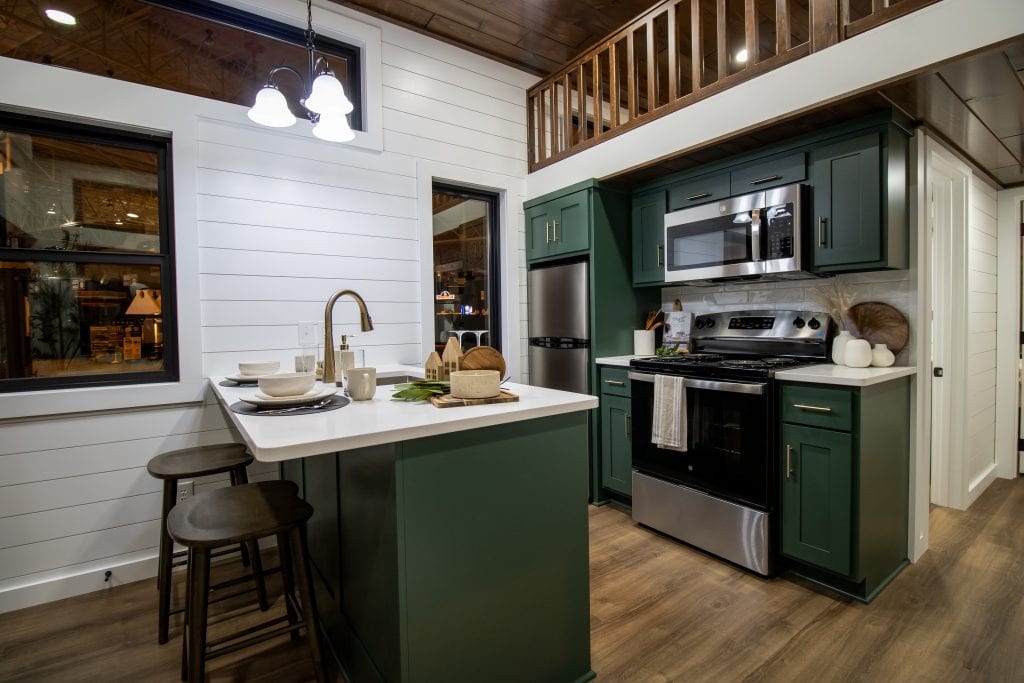

Kitchen Designs

• Custom base & top cabinets w/ flat panel doors
• Soft close door hinges & drawer slides
• Double bowl sink
• Quartz kitchen countertops
• Tile backsplash
• Faucet & cabinet hardware (matte black)
• Full size 4 burner oven (color black)
• Mid size fridge (color black)
• Above the oven built in microwave (color black)
• Dish washer (color black)

Bathroom Designs

• Custom tile shower w/ glass door
• Custom vanity with cultured marble top & single bowl sink
• Faucets & cabinet hardware matte black
• Standard elongated toilet (white)
• Exhaust vent fan with light combo
• Vanity mirror
• Vanity light
• Towel bars, toilet paper holder (matte black)

Utilities

• Hot water tank/heater 19 gallon electric
• Standard per code Interior outlets, switches, and GFCI receptacle (white covers)
• Recessed lights throughout
• Exterior outlet w/ cover one by each entry door
• Exterior wall light one by each entry door (black)
• Frost resistant exterior faucet one on back of house
• Bosch ductless Mini Split – 1 – 18k outside unit & 2 – 9K inside units
• Safety features per code, fire extinguisher, smoke alarms & carbon monoxide detector
• 100 AMP breaker box w/ conduit for direct tie-In
• All plumbing drain lines ready to tie into 3” pipe
• Pex water lines ready to connect to main water supply
• Stacked washer and dryer (white)

Included Add-Ons/Upgrades

• Porch with composite decking and aluminum railing +$7,800
• Porch with rough sawn cedar posts & beams +$600
• Porch with cedar on ceiling and on house wall +$4,200
• Premier legacy rib textured exterior roof + $600
• Corrugated metal exterior siding ¼” ridges + $1,100
• Poplar nickel gap interior walls – front part + $7,600
• Pine T&G interior ceiling – front part + $2,700
• Quartz kitchen countertops + $2,350
• Tile backsplash kitchen +$2,000
• Custom tile shower w/ glass door + $5,800
• Queen bed frame with drawers for storage $1,100
• Strip Lights around A-Frame window +$1,400
• Pendant light in kitchen +$55
